Product Description

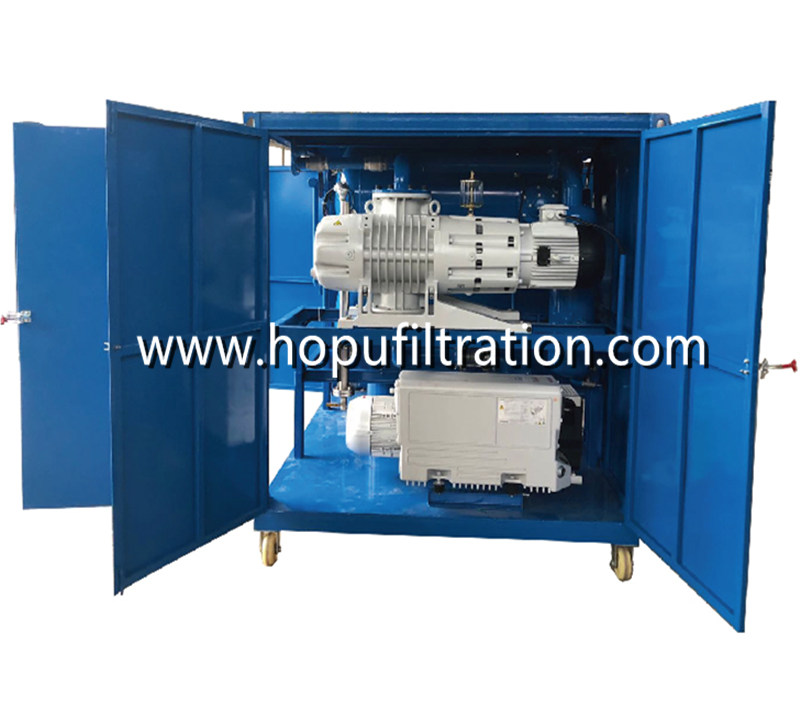

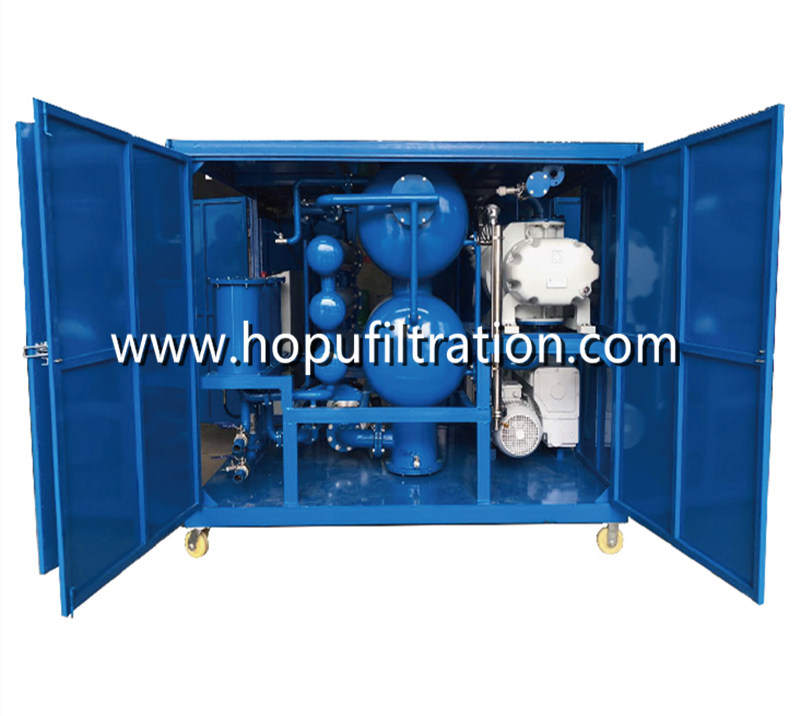

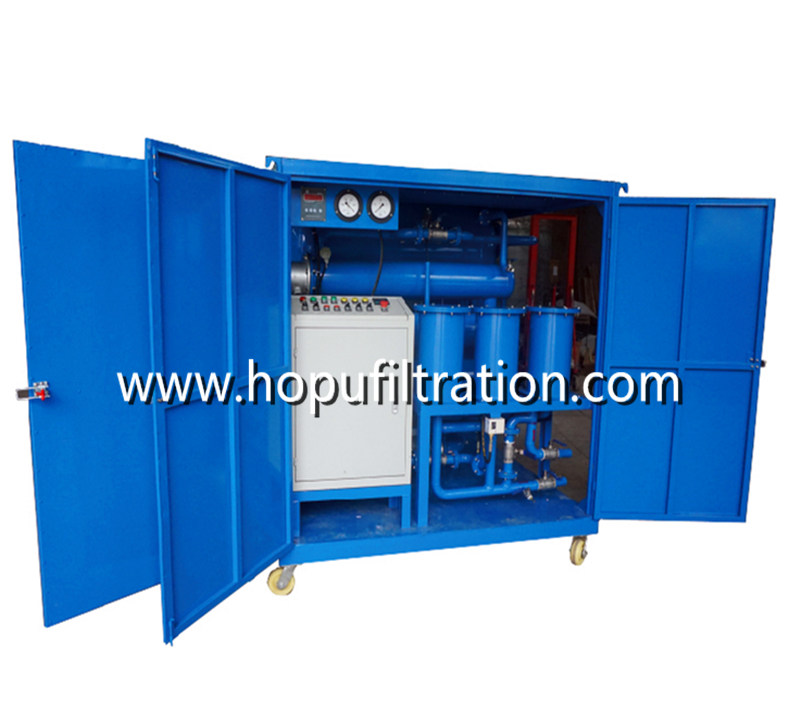

Vacuum Transformer Oil Purifier,Insulating Oil Purification Machine with Housing Cover
-Weather Proof –Outside Use in Raining –Enclosed Available
-On line use -Functional -Convenient -Easy Move & Oil Fast Cleaning
Application:
This oil purifier is a maintenance system for transformers and Transformer oil. ZYD transformer oil purifier can keep transformers and transformer oil in a normal and good running condition. So that to save the new oil cost and transformers replacement cost.
This oil purification plant is applied to filter various of unqualified insulation oils including aging transformer oil, insulation oil, specially for the power which is above 110KV, mutual inductor oil, switch oil and so on. Also it can inject the insulating oil into the transformers on-line.
Features:
1. Double-stage High Vacuum dehydration and degassing and removing impurities from the used transformer oil.
2. Eliminate acidity, sludge, free carbon, discoloration elements, and other soluble matters in the oil, which decays the transformer.
3. It can vacuum filling oil to transformers, and it can vacuum dry transformers and on-line operation with transformer.
4. The standard ZYD system is designed for purifying and filtering oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers).
Technical Parameters:
Index name | unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working vaccum | MPa | -0.08~-0.099 | |||||||
Working pressure | MPa | ≤ 0.4 | |||||||
Temperature range | °C | 20 ~80 | |||||||
Dielectric strength | KV | ≥ 75-85KV | |||||||
Water content | ppm | ≤ 3 | |||||||
Gas content | % | ≤ 0.1 | |||||||
Particles size | μ | ≤ 1 | |||||||
Power supply | 380V 50HZ 3Ph (As per user’s option) | ||||||||
Working noise | dB(A) | ≤65~85 | |||||||
Heating power | Kw | 24 | 30 | 60 | 90 | 125 | 136 | 151 | |
Total power | Kw | 27.7 | 35.5 | 68 | 105 | 135 | 148 | 168 | |
Inlet(Outlet) | mm | Φ25 | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 | Φ60 | |
Weight | kg | 650 | 750 | 900 | 1200 | 1800 | 1950 | 2300 | |
Dimension | L | mm | 1500 | 1500 | 1950 | 2100 | 2200 | 2250 | 2400 |
W | mm | 1250 | 1250 | 1300 | 1350 | 1350 | 1400 | 1450 | |
H | mm | 1700 | 1750 | 2100 | 2200 | 2200 | 2200 | 2200 |
Guarantee value
Moisture | PPM | ≤3 |
Gas content | % | ≤0.01 |
Impurity size | μ | ≤1 (no free carbon) |
Breakdown voltage | kV | ≥75 |
IFT | dynes/cm | ≥40 |
Acid value | mgKOH/g | ≤0.03 |
Dielectric loss factors | tgδ(90°C) | ≤0.001 |
