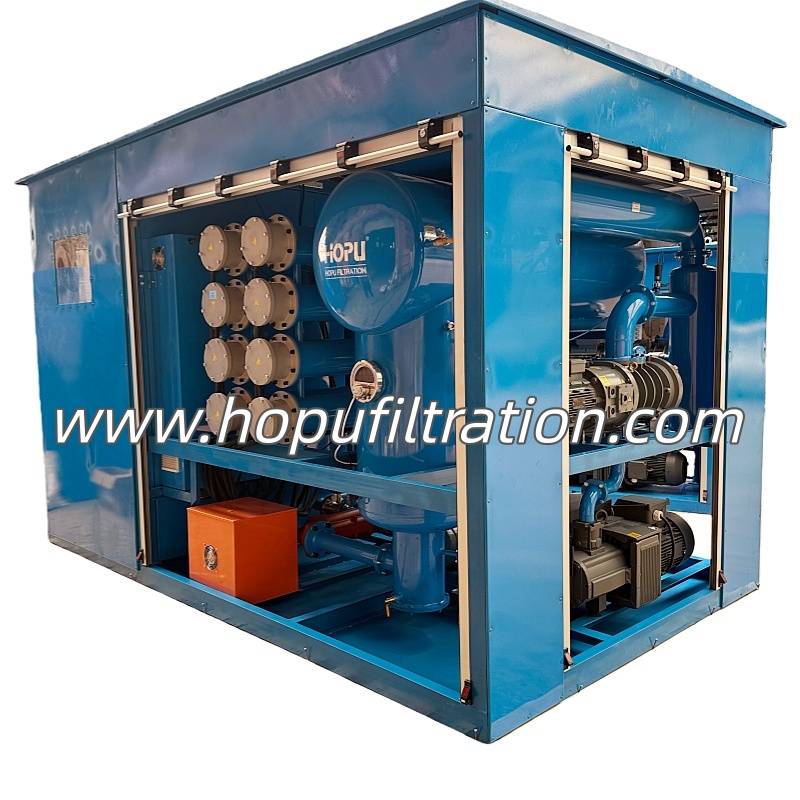

Roller Shutter Door Enclosed Transformer Oil Purifier

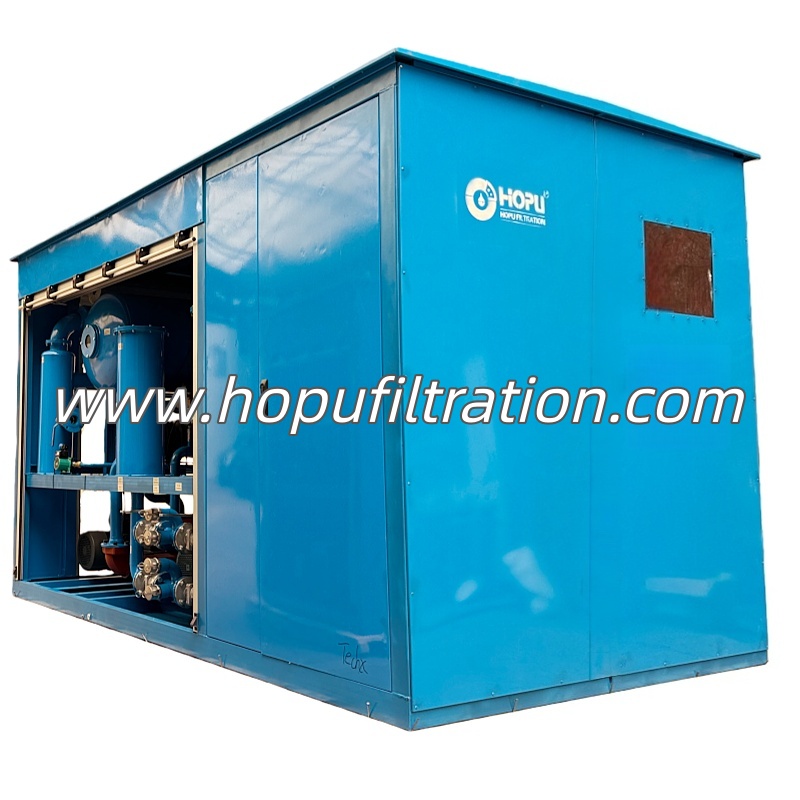

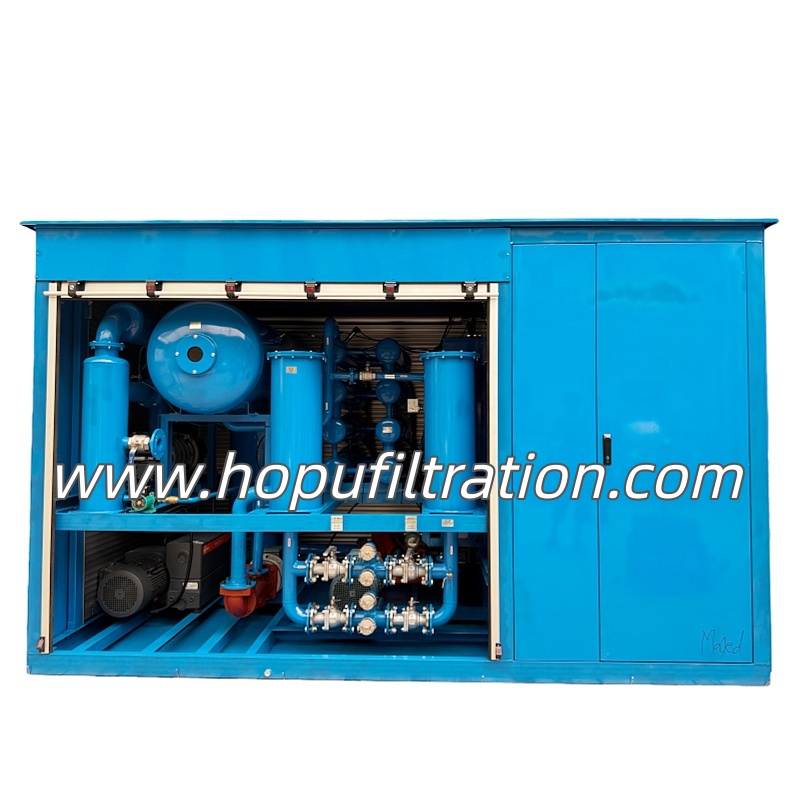

This transformer oil purifier machine is made in fully enclosed type roller shutter door for weather proof, sand proof, wind proof, operation at outdoor usage.

This Vacuum Transformer Oil Purification Machine with enclosed roller shutter Door in Outdoor Use can remove trace water, free water, soluble water, dissolved gas, impurities and tiny particles as well as acetylene, hydrogen, methane and other harmful ingredients effectively and rapidly from used or new transformer oil, so as to improve the flash point, acidity, interfacial tension and dielectric strength value of insulating oil. It suits for purifying all kinds of insulation oils, especially suits for purifying transformer oil from 110KV and above UHV power transmission and distribution projects; also suits for purifying of capacitor oil, mutual inductor oil, switch oil, cable oil.

1). Removing Moisture/ dehydration : the final treated oil can achieve less than 3 ~ 5ppm;
2). Degassing: the final treated oil can achieve less than ≤0.05%;
3). Removing Particles: the final treated oil can achieve 1 micron;
4). Vacuum oil filling/transferring;
5). Vacuum drying equipment for transformers;
6). Vacuum purification online work, unattended operation (at certain working condition).

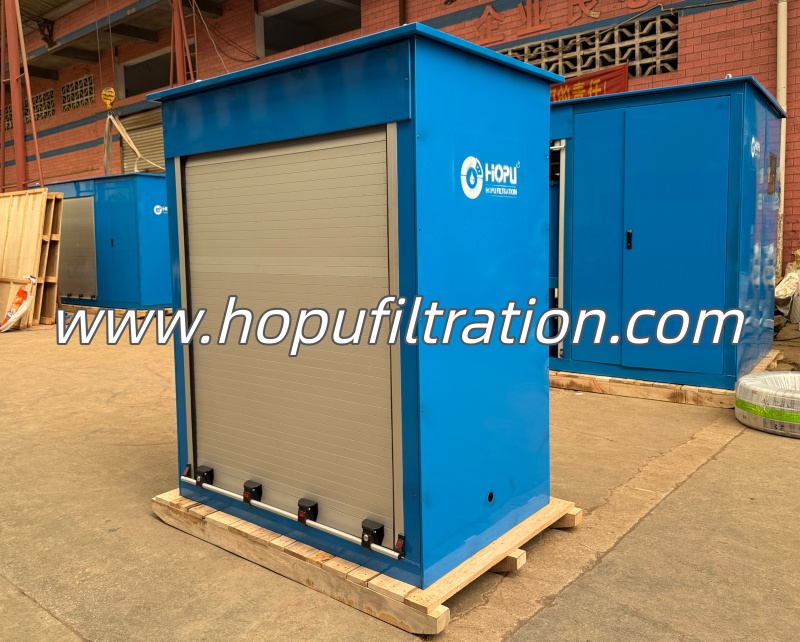

7). Roller shutter door, silent, saving operating space

Product Features
1. This series have an oil tank with two-stage vacuum-segregating space, it come into being different pressure so as to keep oil line balance between two stages.
2. This product adopts vacuum-pump imported from Germany Atlas Brand, which have preceding level in the world,  and with high air pump speed so as to get high working vacuity.
3. As the new technology, vacuum-segregating employs a particular stainless steel,foldable column for dehydration and degassing ,and enlarges the area of separatingto facilate three-dimensional evaporation, so as to abtain enough time for degrassing and achieve the best effect of separation.
4. Using new type of heating equipment, which has low heating load and is able to prevent oil from ageing.
5. Oil level control adopt photoelectric way and features a very sensitive precise control. Even foams can be sensed, and thus there is no possibility of oil spray.
6. Personalized design, customers can require to choose their components are all or partyly imported. Include touching screen and flow gauge is can be selected according to customers. This series could meet different kinds of customersneed.
7.Big capacity of moisture ands gas separating chamber, efficient oil film evaporation, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.

Technical Specs
