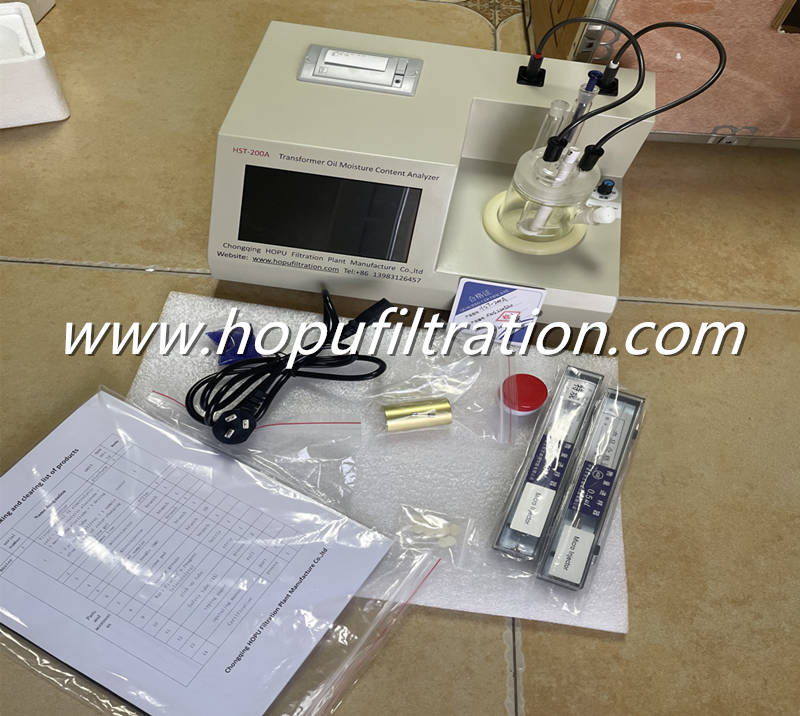

transformer oil trace moisture tester

Oil Water Tester Introduction:

HOPU Manufacturer Karl Fischer Titration Insulation Oil Trace Moisture Tester,Transformer Oil Water Current Analysis Equipment

This equipment adopts new processor and circuit, excellent low-power consumption. Use measuring electrode signal as the criterion for the end of electrolysis. The stability and accuracy are the critical factor of effect on measurement accuracy. Due to use advanced components and method, make it possible to accurately measure electrode signal and further understand the characteristics of electrolyte. Accurately measure the micro water in liquid, solid and gas, applied to electric power, petroleum, chemical, pharmaceutical and food industries.

The 32-bit embedded microprocessor is used as the main control core to embed the mini operating system.

0-400ma automatic detection, high precision, fast measurement speed, stable and reliable.

The motherboard adopts high-quality SMT components with high integration, simple operation and long service life.

Contains 4 calculation formulas, and the measurement results are automatically converted to the required units and can be converted to each other.

Color touch screen, full numeric keyboard, more concise operation, convenient and quick data calculation.

With graph curve analysis to help analyze water content trend.

Switching between Chinese and English at any time.

Technical parameters

Titration method:Coulometric titration(Coulomb analysis)

Display:Color LCD touch screen

Electrolytic current control:0~400mA automatic control

Measurement scope:1ug~200mg

Sensitive valve:0.1µg H2O

Accuracy:10µg~1000µg±3µg

          More than 1mg but not greater than 0.3%

Printer:Miniature thermal printer

Power supply:220V±10%,50Hz

Power:< 40W

Ambient temperature:5~40℃

Ambient humidity:≤ 85%

External dimension:380×310×180

Weight:About 6kg
