Introduction:

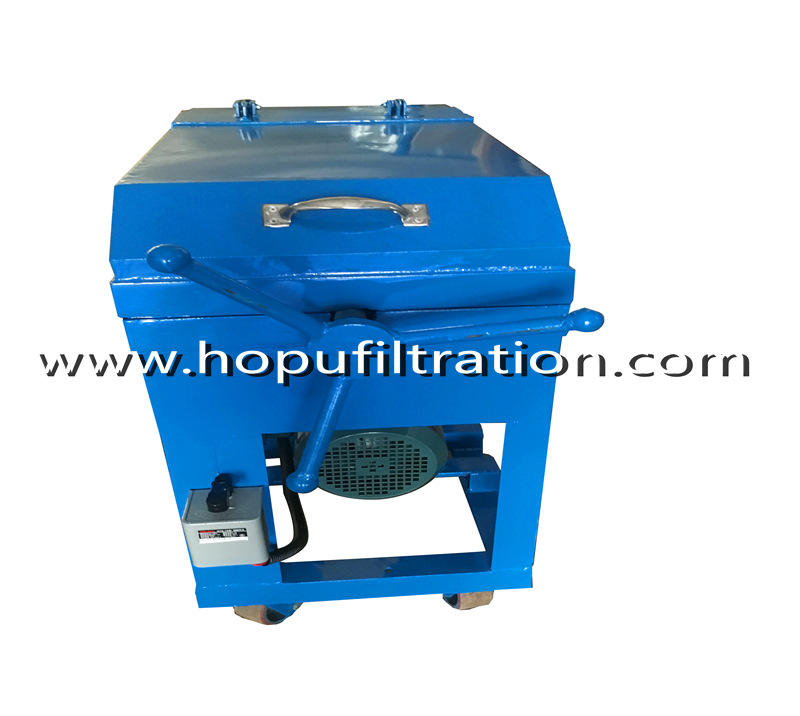

LY series plate pressure oil purifier is designed for power station, electricity factory, mineral enterprise, lube depot, tractor station, petroleum, chemical engineering, metallurgy, national defense unit etc. for filtering water and impurities of transformer oil, turbine oil, engine oil, diesel oil, kerosene, aviation hydraulic oil as well as edible oil while using stainless steel. The machine is made up of filter bed, oil pump and rough filter. There are filtering media such as filtering paper or filtering fuse, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse play a role of filtration. It’s characterized by simple structure, easy operation, low operation cost.
Structure:
The machine is made up of filter bed, oil pump and rough filter.
There are filtering media, such as filtering paper or filtering fuse, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device.
The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering.
It's characterized by simple structure, easy operation, low operation cost, ect.
Plate Frame Oil Purifie Technical Specfication
| Model | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 |
| Flow | L/min | 30 | 50 | 100 | 125 | 150 | 200 | 300 |
| Working pressure | Mpa | 0-0.5 |
| Filtration area | ≥ | 0.3 | 0.39 | 1.3 | 1.54 | 1.89 | 2.01 | 3.1 |
| Compression way | Manual |
| Quantity of filter frame | 11 | 13 | 10 | 12 | 14 | 18 | 23 |
| Quantity of filter board | 12 | 14 | 11 | 13 | 15 | 19 | 24 |
| Bump | Flow | L/min | >30 | >50 | >100 | >125 | >150 | >200 | >300 |
| Pressure | Mpa | 0.6 |
| Power source | (3-phase) 380V 50hz |
| Electrical machinery | Power | KW | 1.1 | 3 | 4 | 5.5 |
| Rotation | r/min | 1400 |
| Filter paper size | ≥1μ |
| Filter paper size | mm | 185*190 | 285*290 |
| Caliber | Entrance | mm | 32 | 32 | 44 | 44 | 50 | 50 | 65 |
| Exit | mm | 25 | 25 | 32 | 32 | 44 | 44 | 50 |
| Volume | Length | mm | 700 | 750 | 900 | 1100 | 1300 |
| Width | mm | 300 | 440 |
| Height | mm | 720 | 840 | 1000 |
| Weight |
| Kg | 76 | 86 | 130 | 180 | 210 | 230 | 280 |
