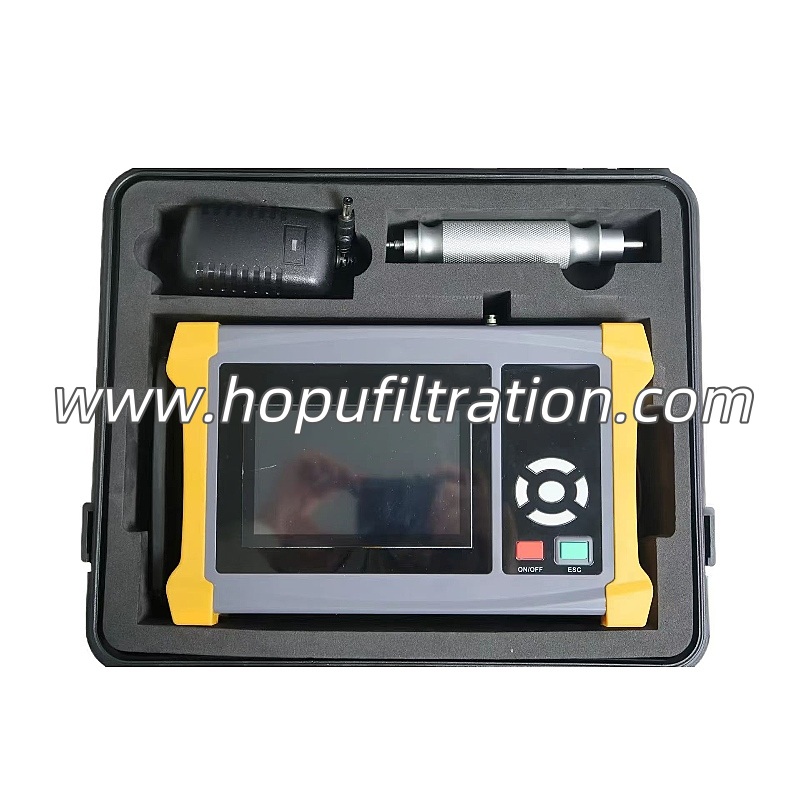

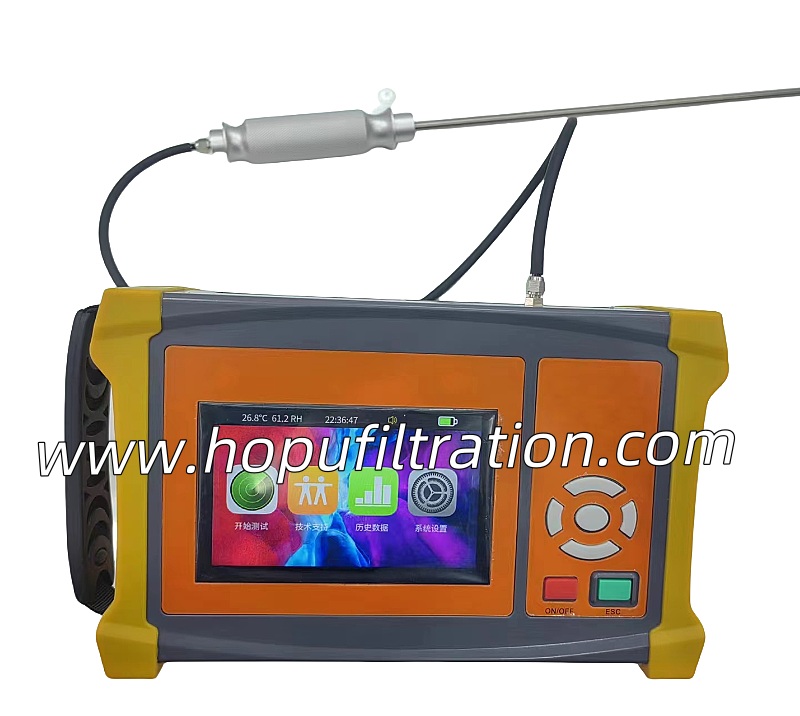

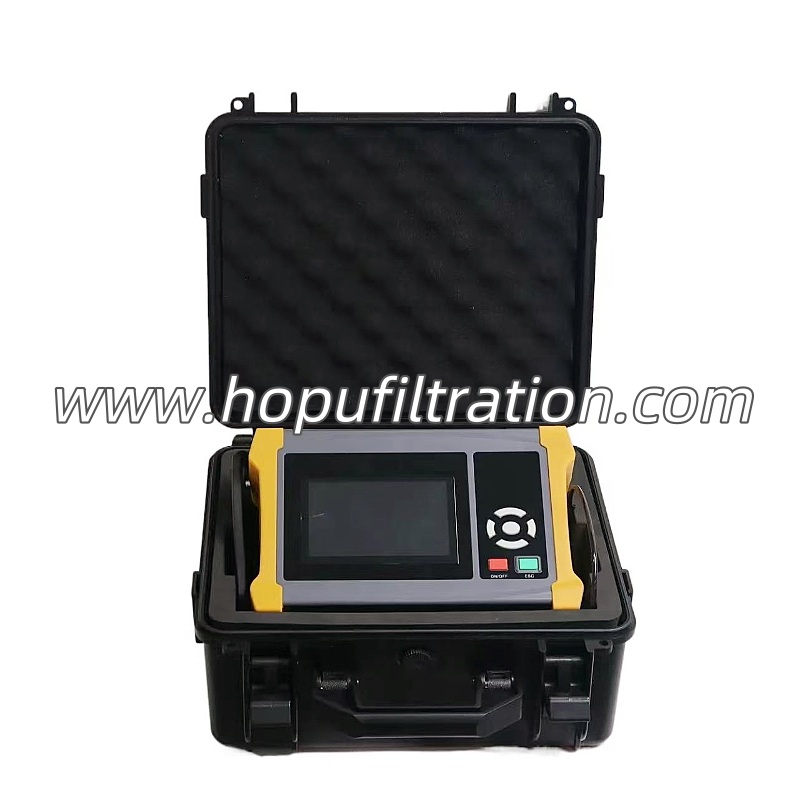

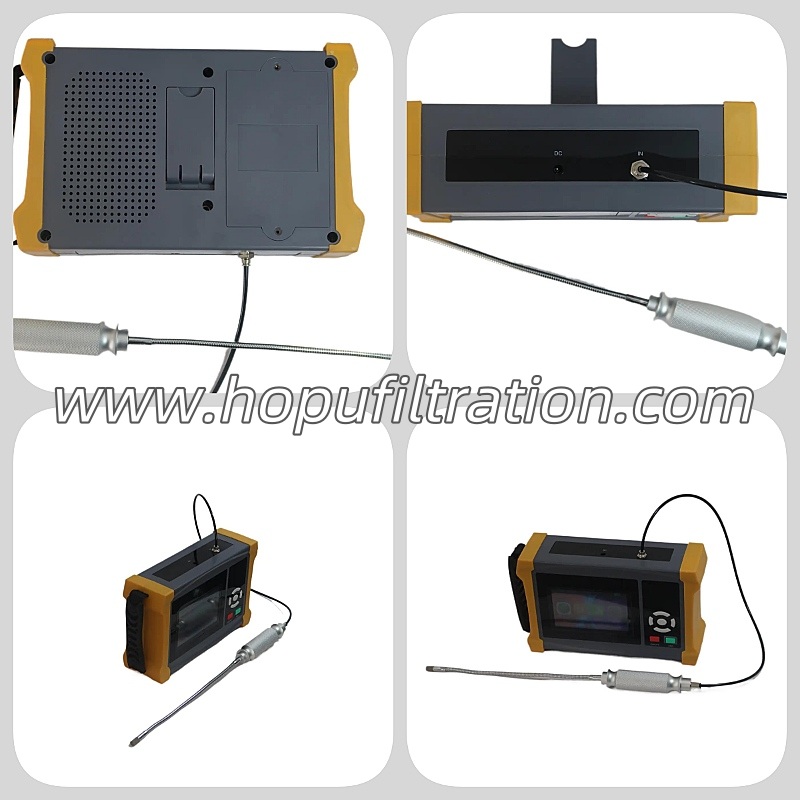

Handheld Infrared SF6 Gas Leakage Detector

Handheld Infrared SF6 Gas Leakage Detector Application:

It is suitable for electric power, railway, electrical appliance manufacturing, chemical industry, fire-fighting equipment and atomic physics research and other departments to detect the leakage of equipment and containers filled with sulfur hexafluoride gas, and quickly and accurately carry out qualitative and quantitative measurement and analysis of sulfur hexafluoride gas. At the same time, it is also suitable for SF6 high-voltage circuit breaker factory as a supporting instrument for SF6 electrical equipment and export products.

HOPU high-precision handheld SF6 gas leak detector accurately finds the SF6 gas leakage point by detecting the SF6 gas concentration value, making sound and light alarms according to the concentration threshold set by the user, and detecting the change trend of the data, which brings great convenience to the maintenance of SF6 equipment.

Portable Sf6 Gas Leak Analyzer features:

It adopts the international advanced pumping type, NDIR single-beam dual-wavelength infrared measurement technology, with high detection sensitivity, accuracy and stability;

It adopts high-precision digital processing technology, as well as unique drift control and temperature compensation circuit, and has strong anti-interference ability;

It has full-featured self-test functions such as low battery power, sensor failure, and over-range during detection;

Adopt color large-screen dot matrix LCD display, full Chinese menu function management;

The detection process displays the detection data in real time, and has a dynamic waveform curve analysis diagram;

The screen displays the alarm value and curve display, and adopts the buzzer alarm mode;

Self-calibration function;

Large-capacity rechargeable lithium battery, continuous working time is more than 5 hours;

Clock perpetual calendar function;

Compact size, easy to measure by hand;

It has the function of 20,000 pieces of data, waveform storage, and flipping query;
