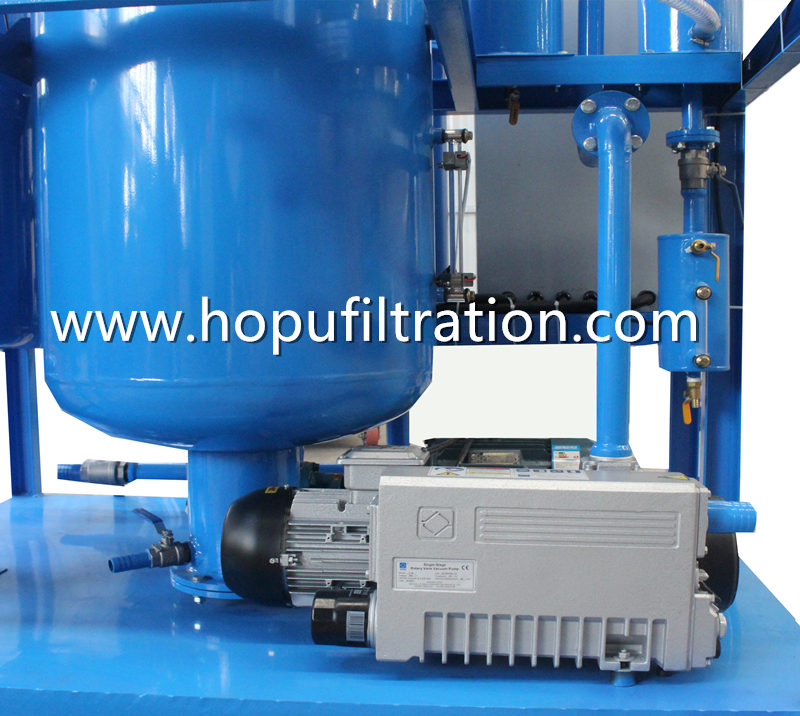

Gas Steam Turbine Oil Purification Unit, Lube Turbine Oil Vacuum Dehydrator

Inquire Now Next ProductDownload
share

Product Description

Application:

High levels of water and particulate contamination can be detrimental to the life of a turbine bearing. Our TY vacuum turbine oil dehydration system is able to remove emulsified water levels below 50 parts per million which can give bearings up to an additional 200% life and performance.

Turbine Oil Service is an extremely important and integral part of the performance of a turbine and the system lubricant. ASSEN has the professional services equipment to support your maintenance program to increase system efficiencies and decrease maintenance costs.

By using the HOPU vacuum turbine oil purifier machine you will benefit by the following:

Reduced wear

 Extended equipment life

 Increased productivity

Features:

1. It adopts the coalescence and separation technique and three-dimensional flash distillation technique, and it has strong ability to break emulsion and remove water from the oil.

2. Optimized electric heating system with automatic constant temperature controller ensures the oil temperature to be even and stable.

3. Precise multi-stage filtration system helps remove different kinds of impurities with high quality filter element of better ability of containing pollutants and long service life.

4. Advanced infrared oil level control system and pressure protection device make operation simple and safe.

5. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.

6. Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.

7. The machine can also be installed with digital flow meter and timer to calculate and record the volume of output oil and working hours (it's optional).

8. Aluminum electric control cabinet has the merits of heat conducting and anti-explosi

Technical parameters


Index Name

Unit

TY-10

TY-20

TY-30

TY-50

TY-100

TY-150

TY-200

TY-300

Flow rate

L/ h

600

1200

1800

3000

6000

9000

12000

18000

Working vacuum

MPa

-0.06~-0.095

Working pressure

MPa

≤ 0.4

Temperature range


20 ~80

Power supply


380V 50HZ 3Ph (As per user's option)

Working noise

dB(A)

≤65~80

Heating power

Kw

12

15

18

24

45

60

72

84

Total power

Kw

14

17

20

27

48

66

81

97

Inlet(Outlet)

mm

Φ25

Φ25

Φ25

Φ32

Φ42

Φ50

Φ50

Φ60

Weight

kg

400

450

500

600

800

1000

1100

1550

Dimension

L

mm

1280

1350

1350

1350

1500

1500

1600

1650

W

mm

750

900

950

1000

1000

1200

1350

1350

H

mm

1450

1450

1500

1800

1800

1800

1800

1850


Guarantee value


Capability item

Data

Moisture

≤20 PPM

Break emulsification value

≤ 10min (GB/F 7305)

Clean degree

≤4grade (NAS1638)
