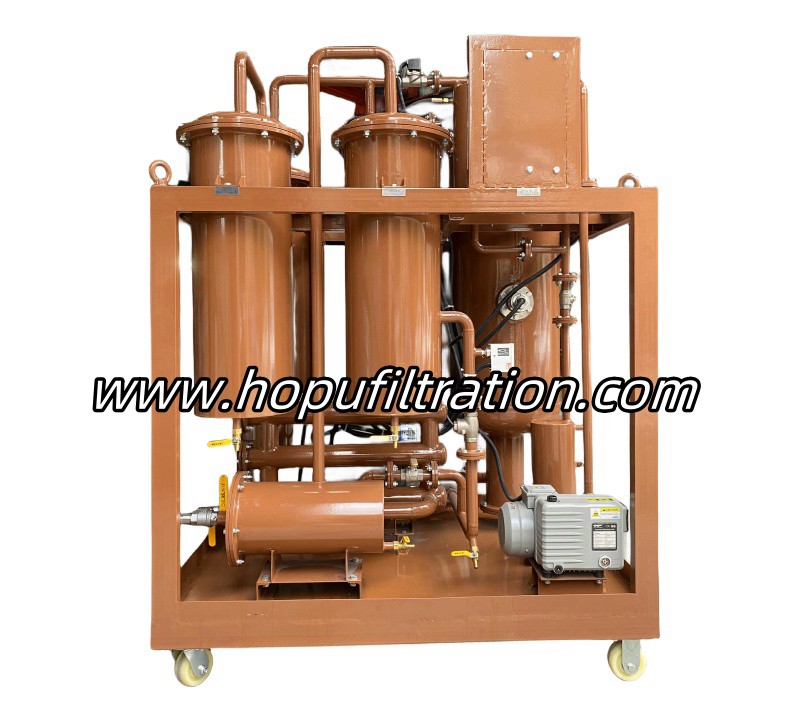

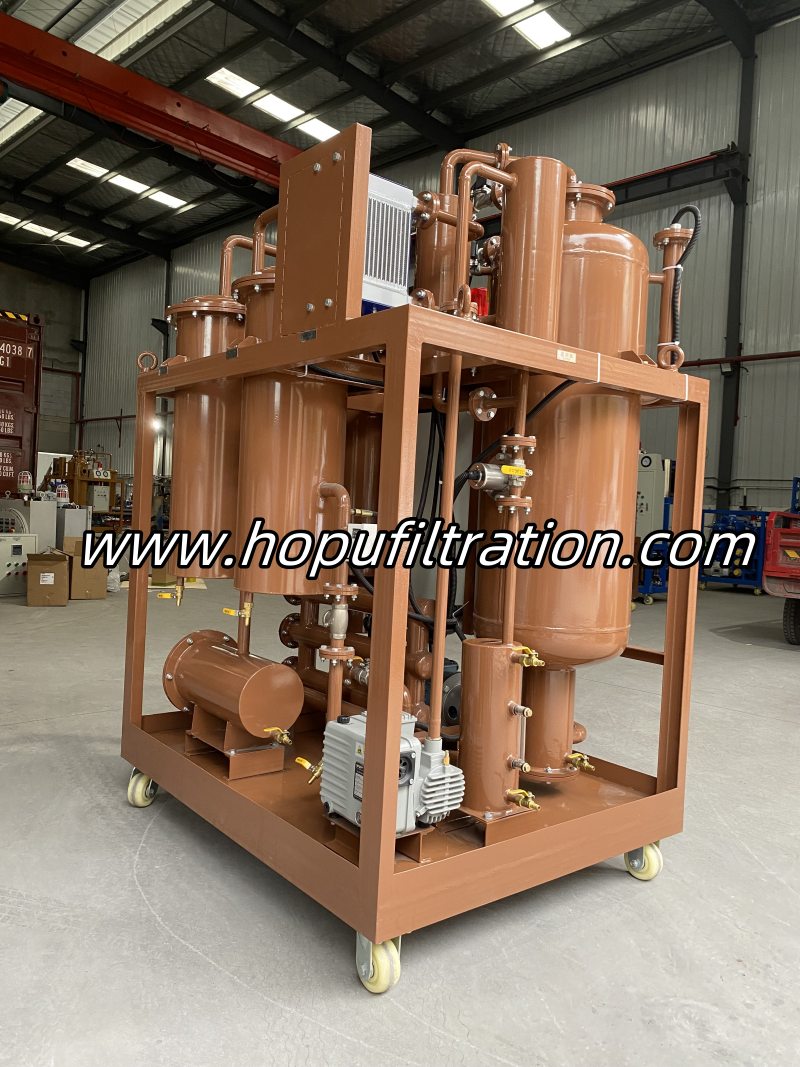

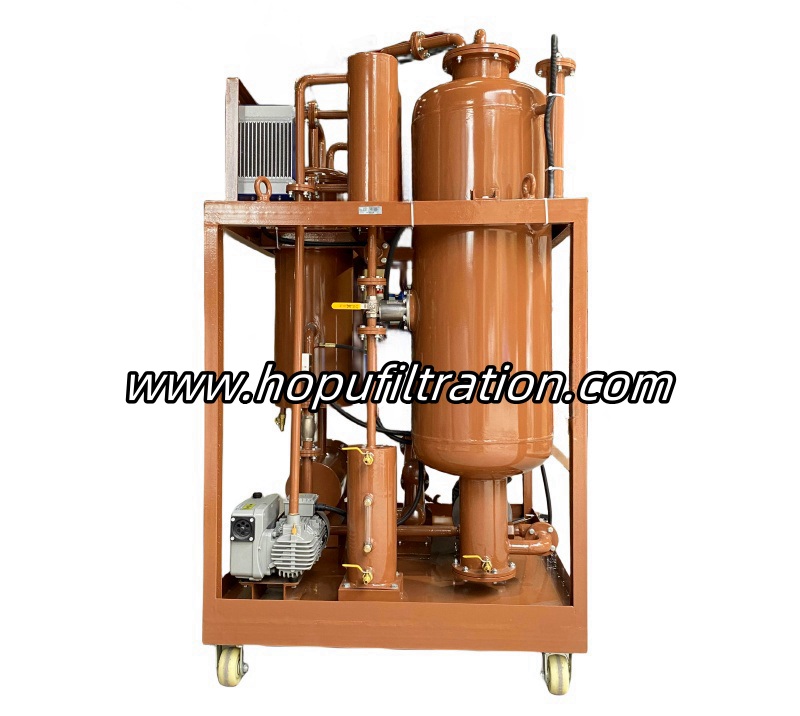

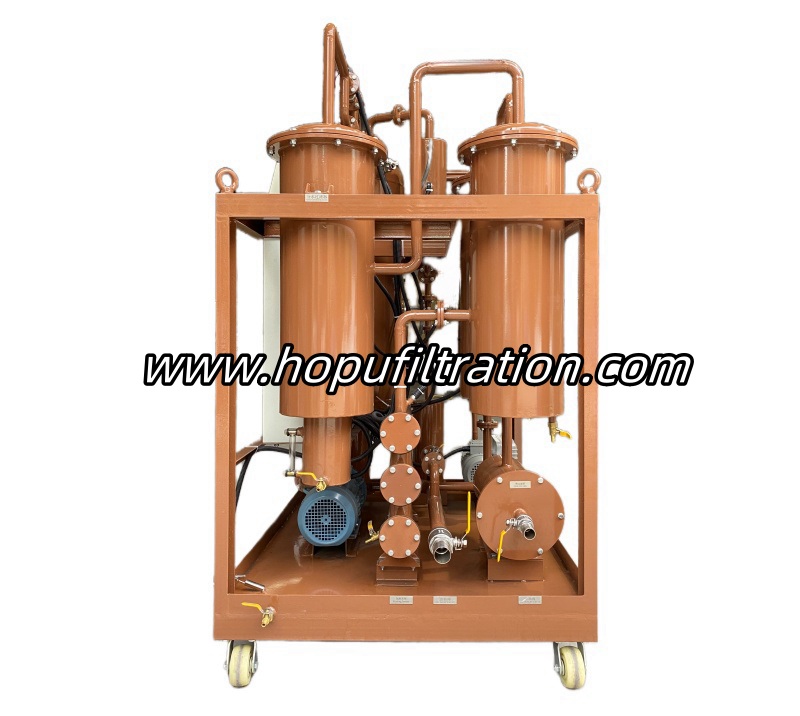

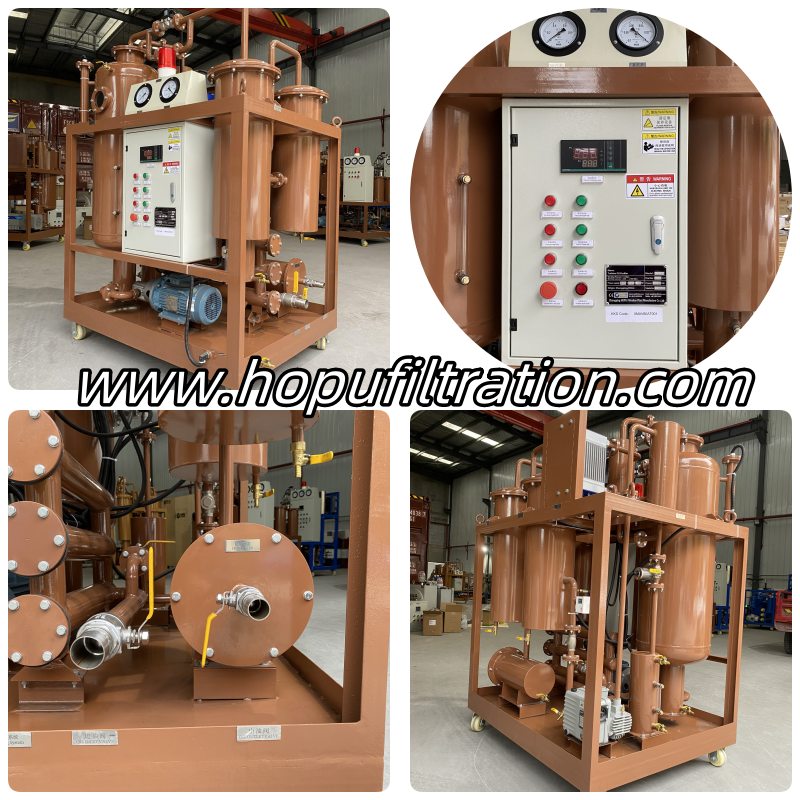

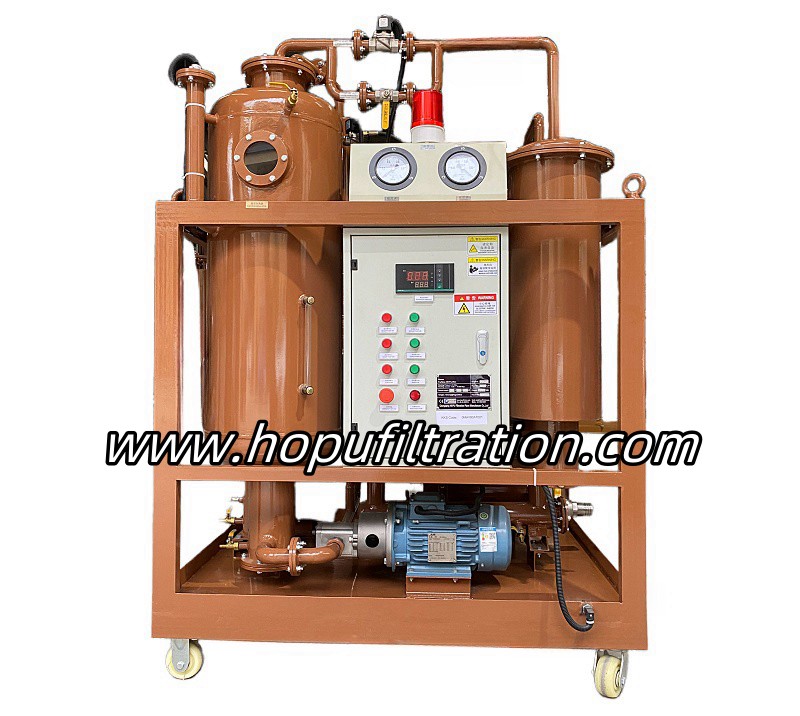

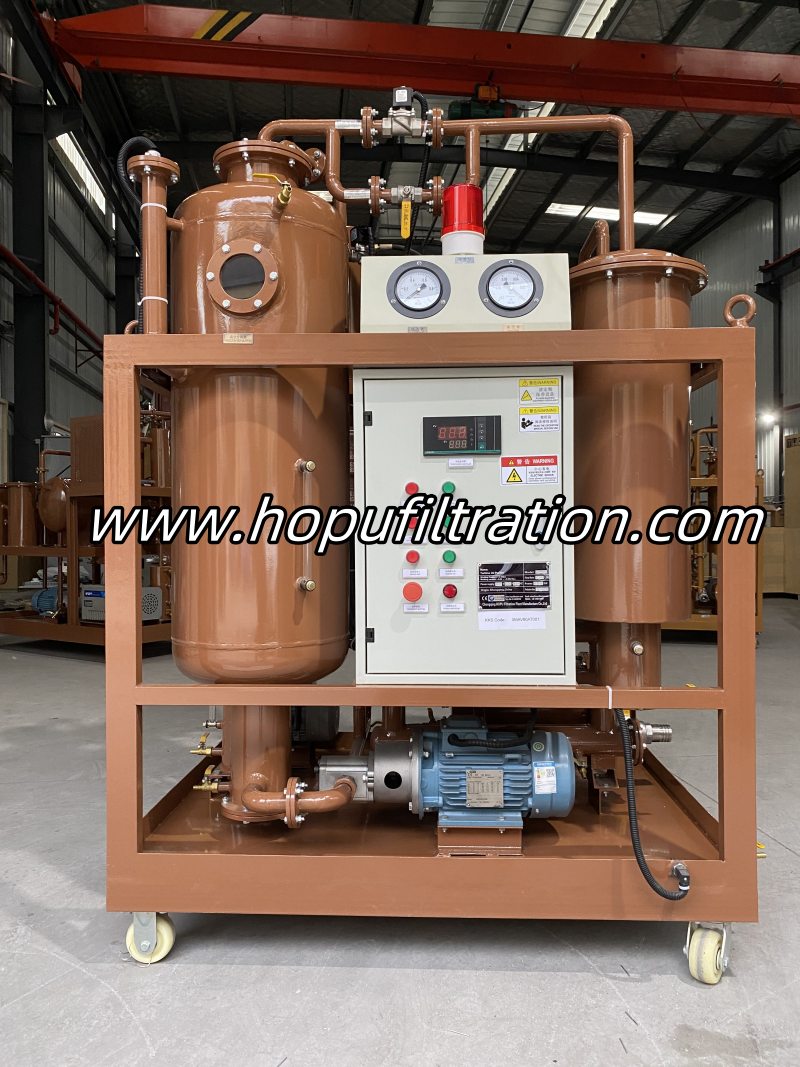

HOPU Vacuum Turbine Oil Filtration Machine or compressor oil purifier Application
Vacuum turbine oil purifier adopts a purely physical oil purification treatment method to quickly demulsify the emulsified turbine oil without affecting the oil composition and performance, and remove the pollutants contained in the turbine oil. Moisture (including dissolved water and free water, etc.), impurities (particulate impurities and mechanical mineral impurities), sludge and gas and other harmful components, thereby reducing the acid value of the oil, improving the oil lubrication and cooling performance; and effectively ensuring the normal operation of oil equipment operation, extend the service life of oil-using equipment and avoid accidents.
It is widely used in the rapid and deep online purification of turbine oil and hydraulic oil used in power plants, steel, metallurgy, petroleum, machinery, chemical industry and other industries.
HOPU Vacuum Turbine Oil Filtration Machine Features and Benefits
1.Strong capabilities in separating and reducing water content less than 100PPM.
2.Fast demulsification less than 15 min.
3.High performance in purifying impurities less than 1 micron
4.Excellent functions in removing gas content less than 0.1%
5.Advanced high density heater system speed up the dehydration and degassing.
6.Advanced medium cooling and endothermic condensation system.
7.Independent monitoring of each values (vacuum, pressure, temperature, flow, etc.).
8.Rich protection functions allows the whole operation safely.
9.Cost effective solution in prolonging fluid life and reducing machine downtime.
10.Visual indicators with power and alarm output warnings.
11.Fully integrated PLC automation technology (optional)
Online water tester is available.
Available in mobile option, immovable option and trailer.
Oil purifier can be made in hermetical, canopy-covering, open and frame style.
Can choose water-ring vacuum pump.
HOPU Turbine Oil Purifier Technical Specs (for reference only)
| | | | | | | | | |
| | | | | | | | | |
| | |
| | |
| | |
|
| 380 VAC, 3 Phase, 50 Hz (or as per requirement) |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
Oll Result after Filtration | Moisture (Water Content) ≤ 80 PPM |
|
Filtering Accuracy ≤ 5 micron |
Emulsification Value < 12 min (GB/F 7305) |
Cleanliness ≤ NAS 1638 Grade 6 |
How we choose suitable Lubricating Turbine Oil Purifier ?
The performance index of lubricating oil largely depends on the water content, gas content, impurities in the oil and the pollution degree of the oil. In order to enhance the lubricating performance of the oil, the oil must be dewatered, degassed, cleaned, etc. under rated vacuum and temperature. Then it is necessary to use a special oil filter to filter the lubricating oil, so as to ensure the performance of the lubricating oil.
