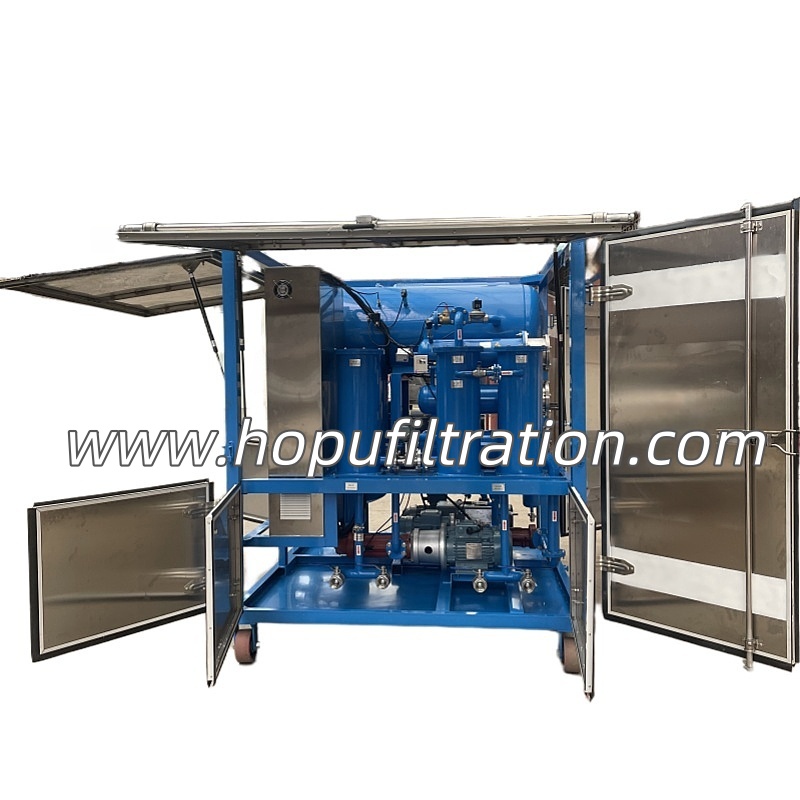

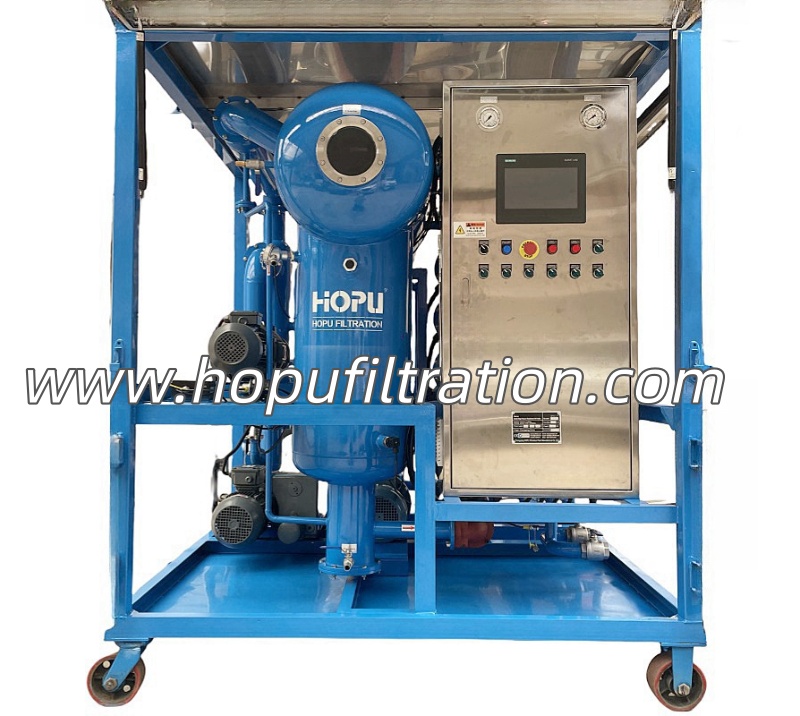

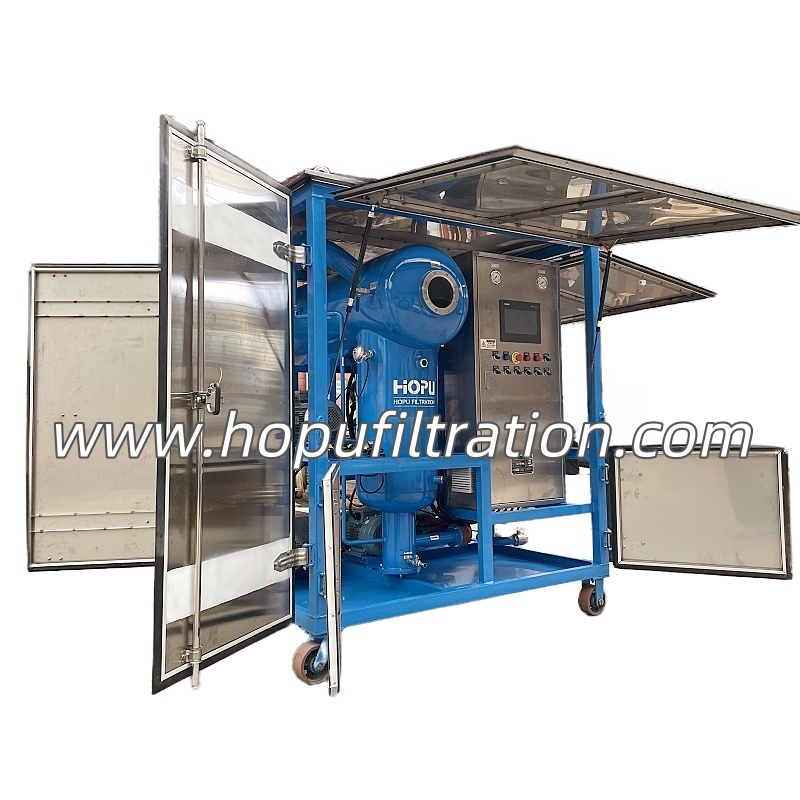

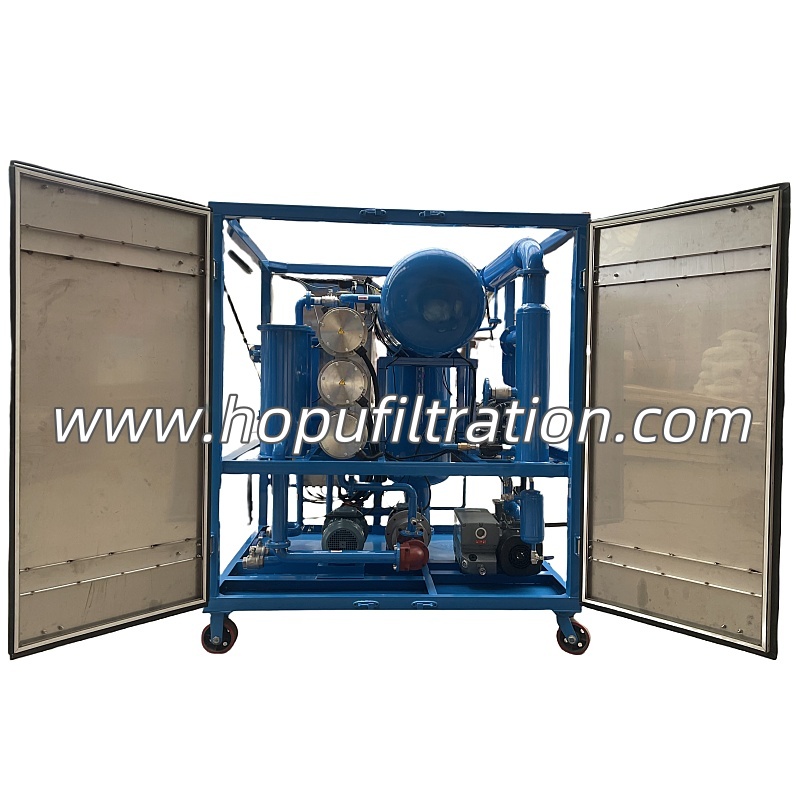

HOPU Stainless Steel FR3 Silicone Fluids Transformer Oil Purifier Usage:
Natural ester FR3 vegetable transformer oil purifier, Insulation Silicon Oil Filtration Machine is mainly used to improve the properties of transformer oil for 66KV to 500KV power transmission project. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer's insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels. We are a designing, engineering and manufacturing company capable of application customization for best solutions.
The stainless steel transformer oil purifier can be operated in the following modes:
- oil pumping;
- oil heating and filtration;
- oil dehydration and degassing;
- vacuumizing of transformers
- oil decoloring ，desulfurization and deacidication (optional design)
Features of Natural ester FR3 vegetable transformer oil purifier, Insulation Silicon Oil Filtration Machine:
1. Used in the electric power system (66kV~500KV power transmission line).
2. Features include high working vacuum, fast oil filtering and sound oil protection.
3. Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.
4. The oil filter machine is made of stainless steel, anti-corrosion, obtain high filtration efficiency for Cargill E360, ENVIROTEMP FR3 FLUID and other silicone fluids
5. Horizontal double vacuum separation technology, doubling the evaporation area and degassing time, the vacuum degree can keep to -0.1Mpa

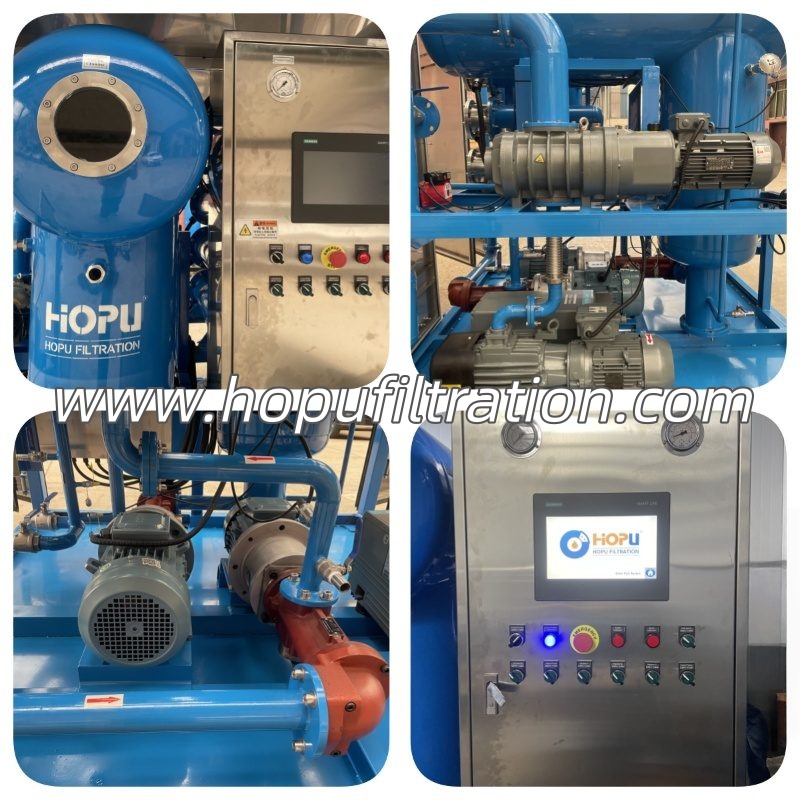

6.HOPU unique designed Automatic defoaming system with dual electronic monitoring system and circulation pump, which avoid the foam injecting and gushing to vacuum pump completely.
Specification of Natural ester FR3 vegetable transformer oil purifier:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
| Working vacuum | Mpa | -0.06 ～ -0.099 |
| Working Pressure | Mpa | ≤0.3 |
| Temperature | ℃ | 20 ～ 80 |
| Power |
| 380V/3P/50HZ(as per customer’s request) |
| Working Noise | Db（A） | 75 | 75 | 75 | 80 | 80 | 80 | 80 |
| Heating Power | KW | 36 | 48 | 72 | 90 | 135 | 147 | 159 |
| Total Power | KW | 39 | 52 | 81 | 100 | 148 | 155 | 170 |
| Inlet/Outlet | mm | φ25 | φ32 | φ50 | φ50 | φ63 | φ63 | φ75 |
| Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 |
| Overall | Length | mm | 1050 | 1100 | 1300 | 1450 | 1600 | 1800 | 1900 |
| Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 |
| Height | mm | 1500 | 1600 | 1650 | 1700 | 1800 | 1900 | 2000 |
