Product Indroduction

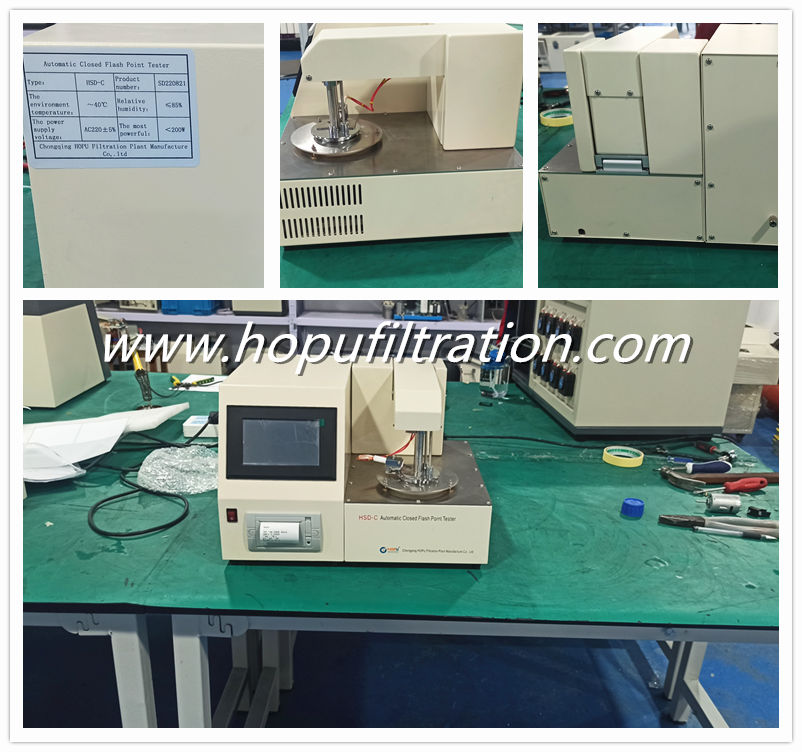

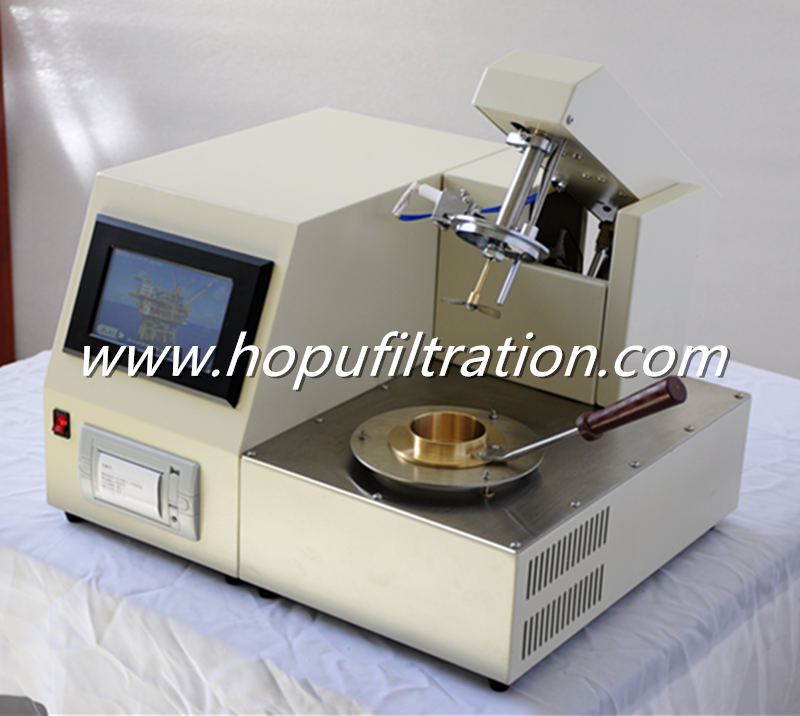

Automatic Pensky-Martens Closed-Cup Flash Point Tester is designed and manufactured as per standards ASTM D93 Determination of Flash Point - Pensky-Martens closed cup method. It is used to make determination of the closed cup flash point of the petroleum products
fully automatic closed cup oil flash point tester complies to ASTM D93, IGB261-2008, SH/T0315 etc. It is widely used in railway, aviation, electricity, oil industry and scientific research departments. It uses ARM microprocessor technology, color touch screen, English menu operation; according to the standard automatic ignition, display, detect and print flash point value, automatic cooling and other functions; with accurate measurement, good repeatability, stable and reliable performance.
Main Features
1 resolution 800X600 color touch screen, English display, intuitive and convenient operation;
2 using a new high-speed signal processor control, adaptive PID control algorithm, automatically according to the standard requirements of heating;
3 test, open lid, ignition, alarm, cool, print, the entire operation process is completed automatically;
4 safe without air source, platinum alloy electric wire ignition mode, safe, stable, reliable, high accuracy;
5 built in atmospheric pressure automatic detection chip, atmospheric pressure automatic measurement, automatic calibration and automatic correction flash point value;
6 differential detection, automatic correction of system deviation, automatic detection and alarm;
7 thermal micro printer, making the print more beautiful and more efficient, with offline print function;
8 built in ASTM D93, GB/T 261-08, each degree of multiple criteria to choose from.
Working principle
The instrument in the national standard under the condition of the sample into the test cup, on a test oil test cup heating, the generation of oil vapor and air to form a mixed gas in contact with the flame flash fire when the minimum temperature occurs as a flash point.
The digital signal processor to control the heater according to the temperature changes, the acquisition, the oil temperature at a certain rate rise; ignition time, flash fire detection and automatic control; when the flash fire was measured when the system stops, data acquisition, display and print the flash temperature record results, stop heating.
Technical parameter :
| Display : | Color touch LCD display screen |
| Test method: | Thermocouple differential detection |
| Test range: | Room temperature-350ºC |
| Resolution: | 0.1ºC |
| Repeatability: | flash point<104ºC,allowed ±1ºC; flash point≥104ºC allowed ±2ºC flash point≤110ºC,allowed ±1ºC; flash point>110ºC allowed ±2ºC |
| Printer: | High speed thermal printer,paper size:55mm |
| Temperature Detection: | Imported platinum resistance (Pt100Ω) |
| Ignition mode: | Automatically electronic ignition with airs source |
| Self-checking : | automatic fault checking |
| Power consumption: | <550w |
| Temperature: | Atmospheric temperature: 10ºC-45ºC,humidity: 30-80% |
| Power: | AC220V±10% |
| Dimension: | 397*305*240 mm |
| Weight: | About 15 kg |
