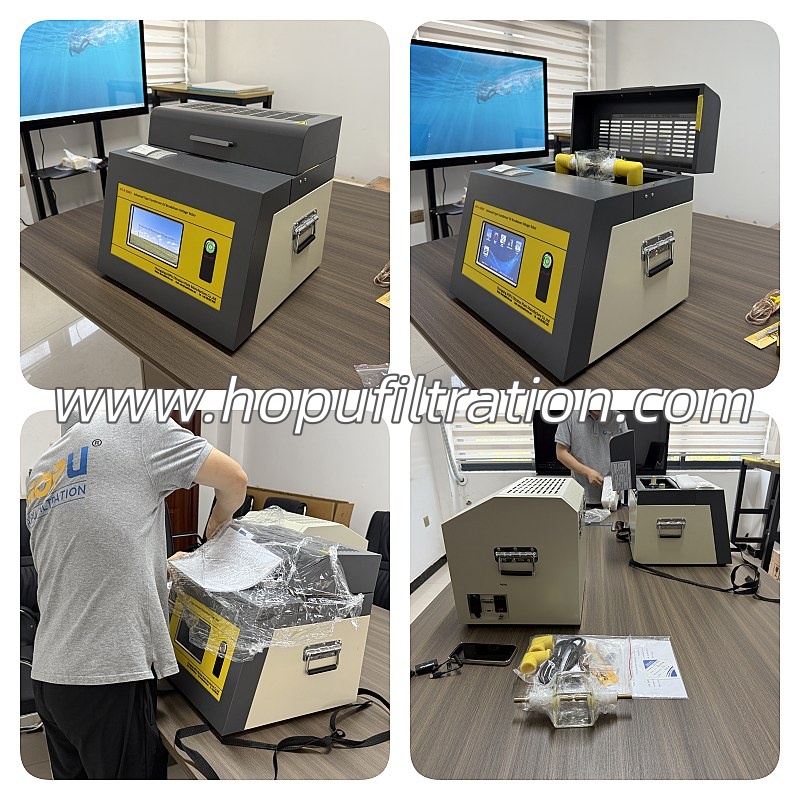

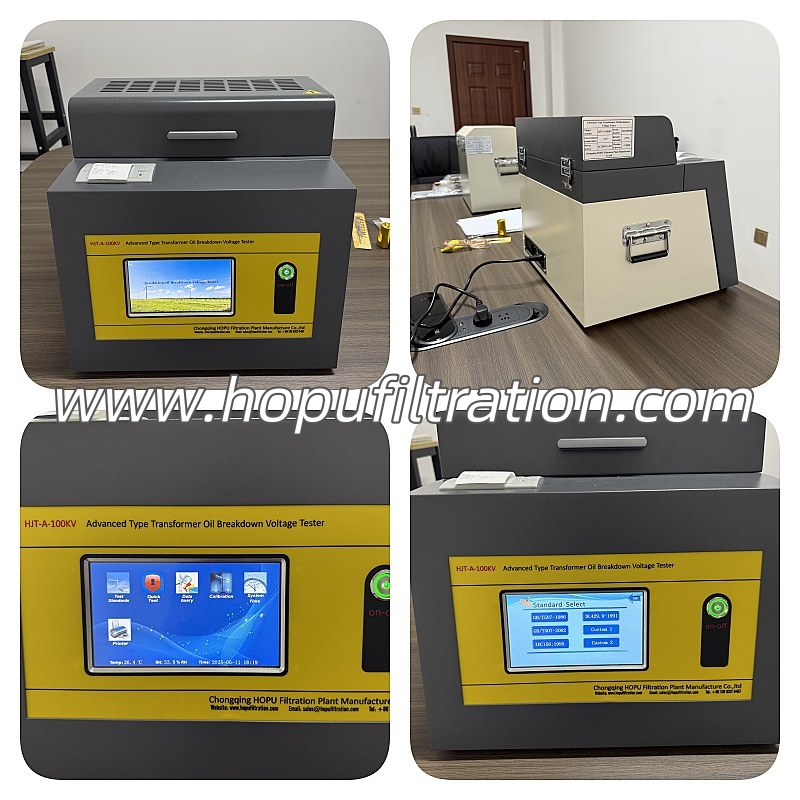

Color LCD Display Transformer Oil BDV Tester

Inquire Now Next ProductDownload
share

Product Description

Oil Breakdown Voltage Testing Kit Introduction

Insulation oil dielectric strength tester is all the scientific and technical personnel of HOPU company,According to the relevant provisions of national standard GB507-1986 and IEC60156 ,ASTMD international standard,Give full play to its own advantages, after many field tests and long-term unremitting efforts, carefully developed and developed high accuracy, full digital industrial instruments.In order to meet the needs of different users, this series of instruments can be divided into single cup,three cups and multi-cup models.The instrument is easy to operate and beautiful in shape.Due to the use of automatic digital microcomputer control, the measurement accuracy is high, anti-interference ability is strong, safe and reliable.

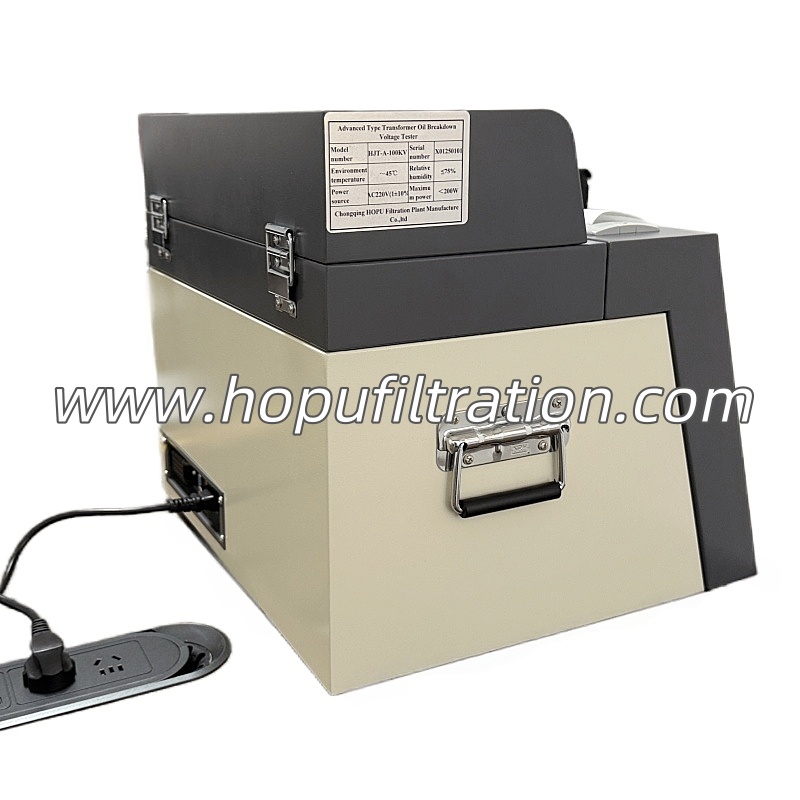

Color LCD Display Transformer Oil BDV Tester

Transformer Oil Testing Kit characteristics

It is controlled by large capacity single chip microcomputer, and the work is stable and reliable;

2. The wide range watchdog circuit in the instrument prevents the phenomenon of crash;

3. A variety of operation options, the instrument program international standard IEC156,ASTMD and custom operation, optional standards have 10, to meet the needs of most countries in the world

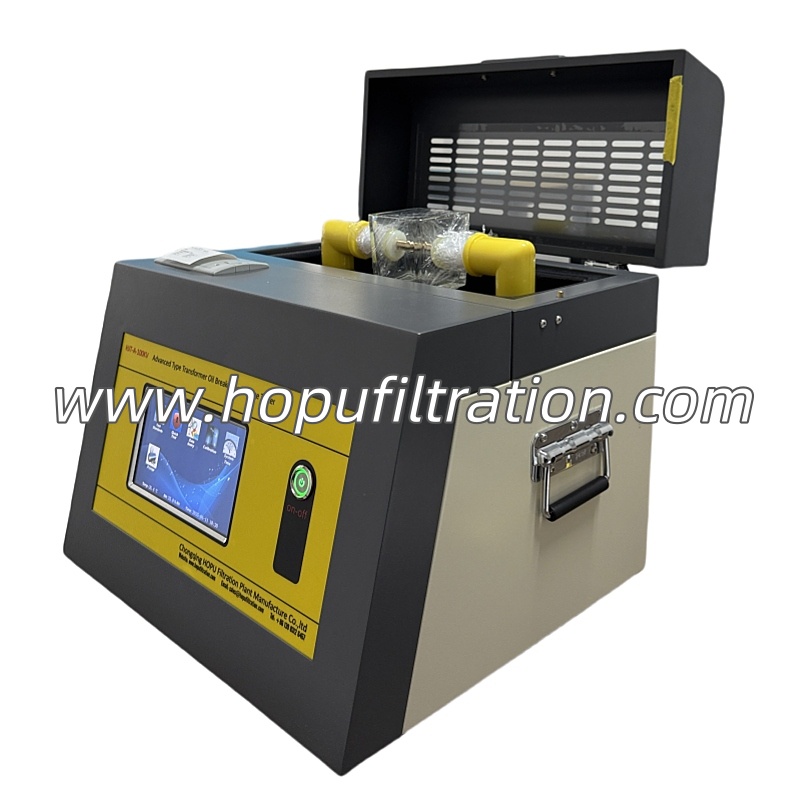

4. The instrument oil cup is made of special glass casting molding, which prevents the occurrence of interference phenomena such as oil leakage;

5. The oil tester's  unique high-voltage sampling design allows the test values to be directly fed into the A/D converter, avoiding errors in the analog circuit and making the measurement results more accurate;

6. Frequency can be set according to customer needs, 50/60HZ conversion, to meet the needs of different customers;

7. The oil tester has overcurrent, overvoltage, short circuit and other protection functions, and has a strong anti-interference ability, electromagnetic compatibility is good;

8. Built-in lithium battery, no external power supply. Portable structure, easy to move, indoor and outdoor use is very convenient.

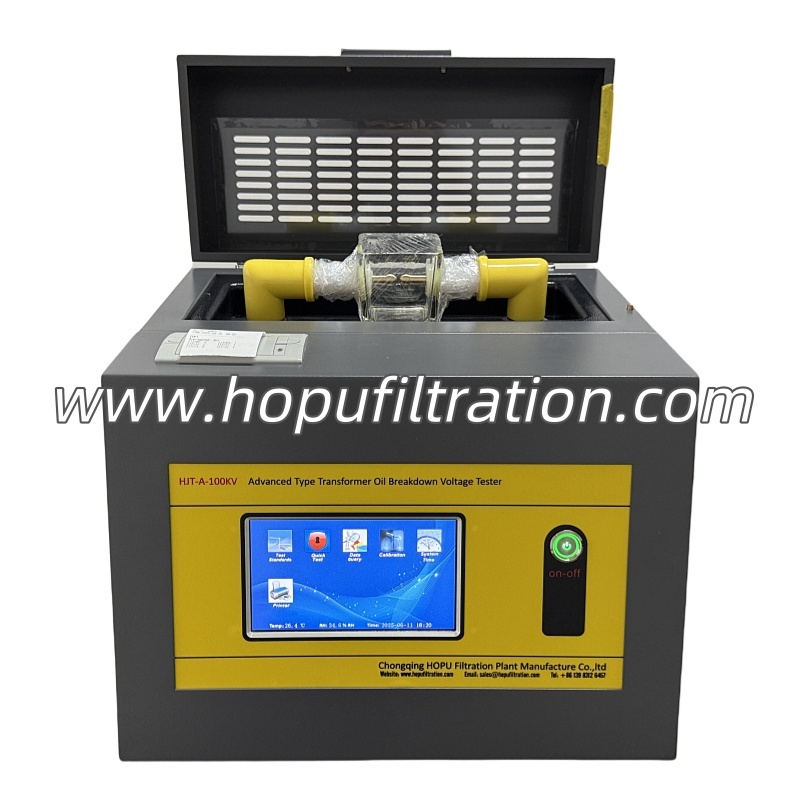

Color LCD Display Transformer Oil BDV Tester

Technical parameters
power supply voltageAC 220V±10%
Power frequency50 Hz ± 5 Hz
Power consumption<200 W
Output voltage0-100kV
Booster capacity1.5kVA
Booster speed2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s four gear options
Measurement accuracy2%
Resting time0-15min(Optional)
Interval time0-10min(Optional)
Pressure times1-6 times (optional)
Stiring time0-90S (optional)
Resolution0.1kV
Power distortion rate<1%
DisplayLarge-screen LCD display
Electrode gapStandard 2.5 mm
Weight32kg
Size409 mm×393 mm×388 mm
Conditions of use
environment temperature0℃~+40℃
Relative humidity<85%
