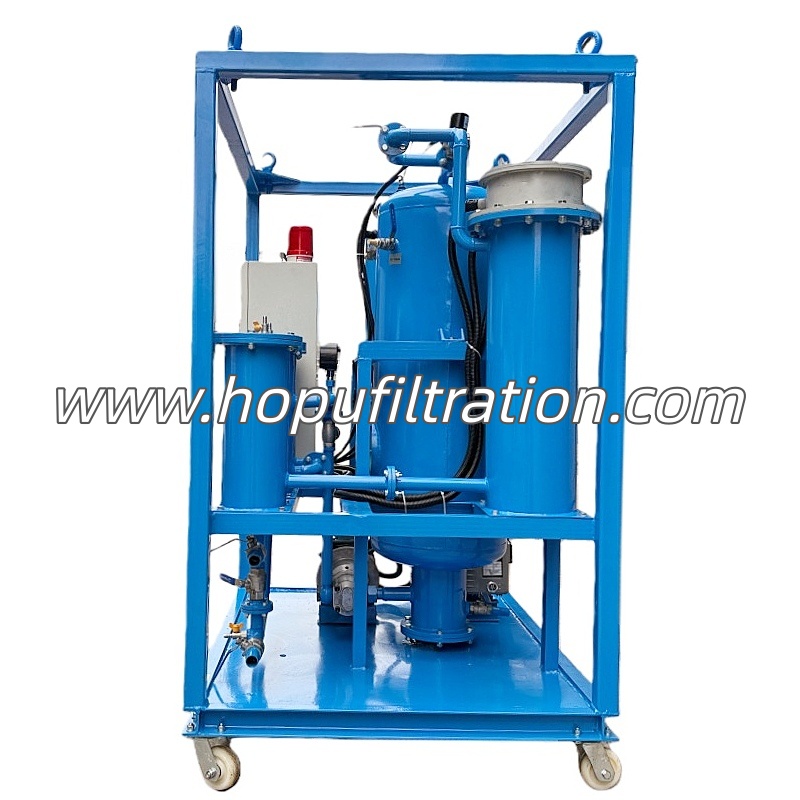

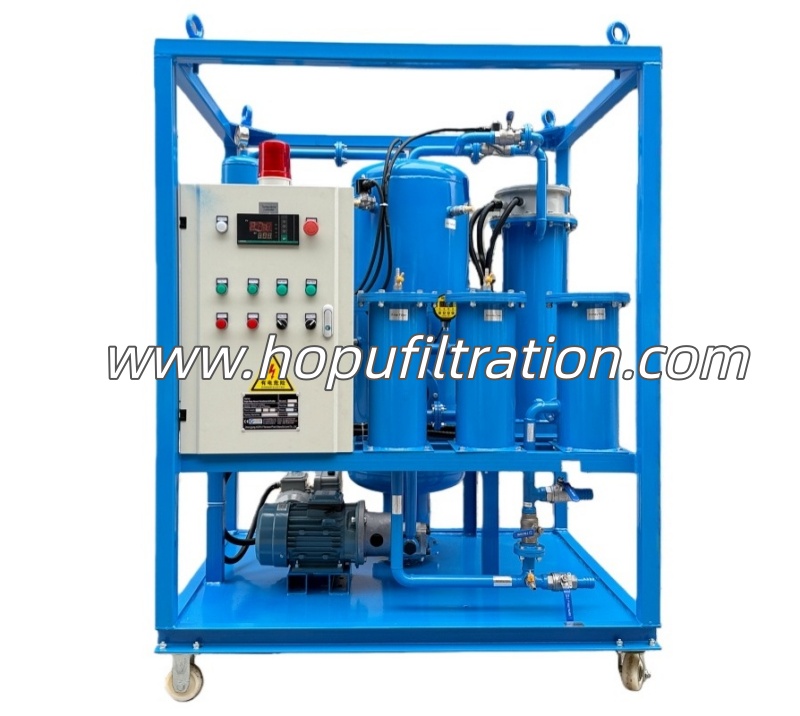

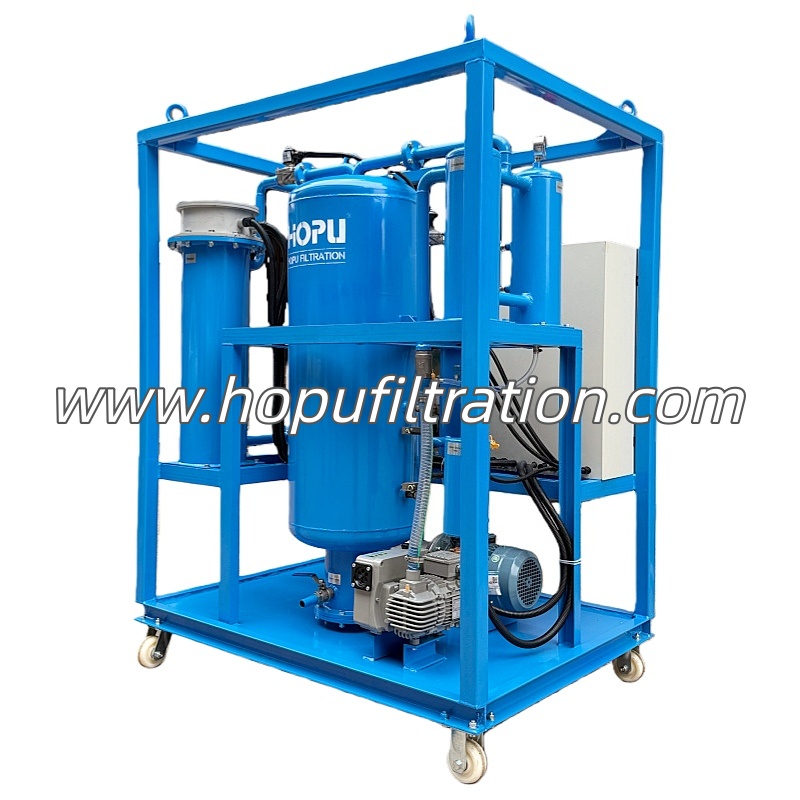

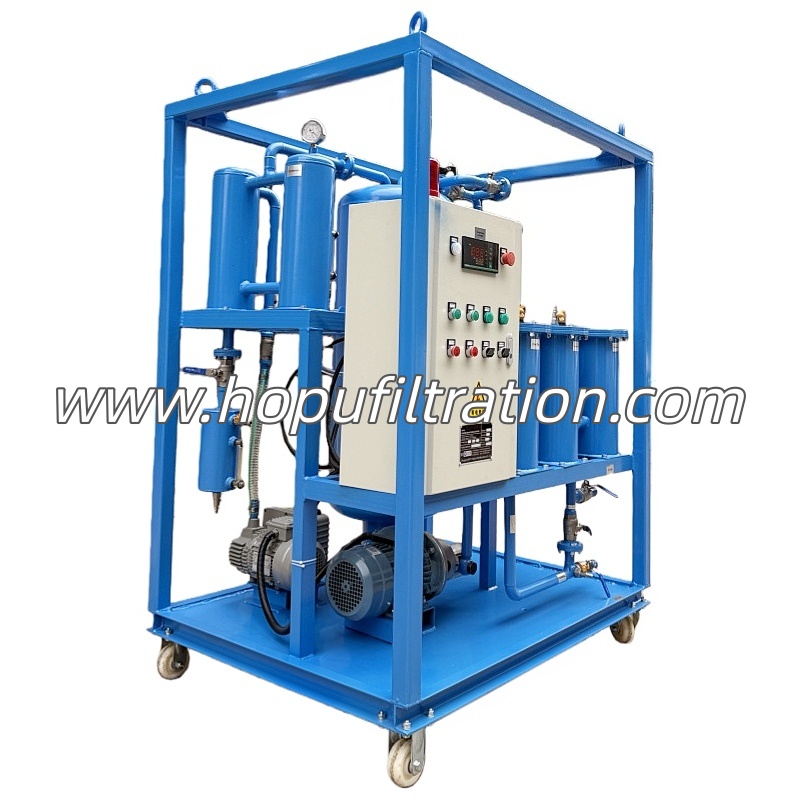

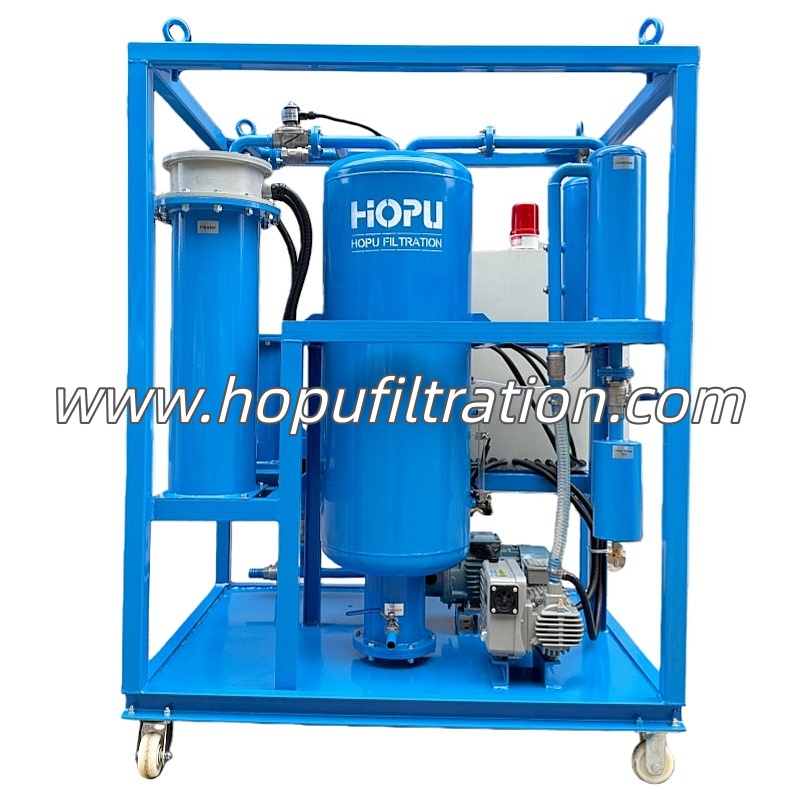

Used Insulation Oil Purification Machine Introduction: Vacuum transformer oil purifier machine is popular in electric power industries, this machine mainly purify and recover old insulating oil, like the transformer oil, mutual inductor oil, cable oil, and switch oils. For the insulating oil, the trace water and gas badly effect insulating oil dielectric strength, it is a good job to remove the trace water and gas completely and effectively. Vacuum distillation way is best way to remove trace water and gas, the treated oil moisture can reach to 4 ppm, gas content is 0.01%. ZY single stage vacuum transformer oil purifier. It is low price, and good working performance. It is very good for middle/low grade transformer oil purifying working. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.
Function
A: removing the moisture. The final treated oil can achieve less than 4 ppm;
B:degassing. The final treated oil can achieve less than 0.1%;
C:removing particles. The final treated oil can achieve NAS5 Grade (Cleanliness Grade).
Application:HOPU ZY Series vacuum insulation tansformer oil purifier, degassing and filtering machine is used to treat various unqualified insulating oil, on-load tap changer oil, transformer oil,tap changer oil,mutual inductor oil,switch oil ,cable oil and so on. The process maintains the oil's dielectric strength, removes free, soluble water, air-gas and particulate matter.This type of machine can degas, dewater by low vacuum distillation,removing the impurities of insulating oil quickly and effectively. It improves the value of voltage value, oil dielectric strength, extends oil service life and make sure electrical equipment work safely. The power station and mine mainly use the machine to deal with transformer oil,mutual inductor oil, switch oil
Technical Specs for HOPU ZY Series Single Stage Vacuum Transformer Oil Purifier
| Parameters | Unit | ZY-10 | ZY-20 | ZY-30 | ZY-50 | ZY-100 | ZY-150 | ZY-200 | ZY-300 |
| Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
| Working vacuum | MPa | -0.06 ～ -0.095 |
| Working pressure | MPa | 0.4 | 0.4 | ≤0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Breakdown voltage | KV | ≥55 | ≥55 | ≥55 | ≥60 | ≥60 | ≥60 | ≥60 | ≥65 |
| Moisture | PPM | ≤5 |
| Gas content | % | ≤0.1 |
| Impurity content | μ | ≤5 |
| Temperature range | ℃ | 10 ～ 100 |
| Power supply |
| 50HZ380V(being regulated according to customer’s option) |
| Working noise | dB（A） | 60 | 63 | 70 | 70 | 75 | 70 | 70 | 70 |
| Heating power | KW | 18 | 21 | 23 | 30 | 48 | 52.5 | 57.5 | 60 |
| Total power | KW | 21 | 23.5 | 25.5 | 33.5 | 51.5 | 57.5 | 65.5 | 68 |
| Inlet/outlet caliber | mm | φ25 | φ25 | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 |
| Weight | Kg | 300 | 350 | 400 | 450 | 500 | 650 | 750 | 900 |
| Size | L | mm | 1000 | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
| W | mm | 700 | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 |
| H | mm | 1500 | 1600 | 1650 | 1700 | 1750 | 1800 | 1900 | 1900 |
Oil Data after purification
| Moisture (water content) | ≤ 1-4 PPM |
| Gas Content | ≤0.01% |
| Impurities Degree (Filtration precision) | ≤1 ~ 5 micron (no free carbon) |
| Breakdown Voltage (Dielectric) | ≥70KV |
| Flash Point | ≥145℃ |
| Water-soluble Acid (PH) | ≥5.5 |
| Acid Value | ≤0.01 mg koH/g |
| Dielectric Loss Factors | tgδ () % ≤0.001 |
| Cleanliness | ≤NAS 1638 Grade 5 |
