Hydraulic Oil Purification and Filtration Equipment
Hydraulic Oil Purifier Description
Generally, hydraulic oil is to be maintained at very high quality of Purification. The Oil often having large sizes of particles is passed through coarse type filter, to trap the large sized particles. Having taken care of micronic and sub-micronic particles, it is further finely cleaned by electro-statically, operated hydraulic oil cleaning system brought to the international standards.
HOPU TYA Series Hydraulic oil Cleaning & Filtration machine is used for cleaning and filtering the various types of hydraulic oil and other industrial lube oils such as gear oil, compressor oil, coolant oil, etc.. used in the power generation, hydraulic system, machinery, metallurgy, mining, petroleum, chemical industry and other fields.
Cooking oil Cleaning machine can effectively purify hydraulic oils at grade ISO - VG - 46, 68, 100, etc… by reducing the water content from 2000 ppm down to 5 ppm and separates (removes) the free water, sludge, gas content and carbon from Lube oil & hydraulic oil.
Features
1. The machine adopt deeply and precisely FH rectangular filtering system and highly polymeric adsorbing material filter. So the machine has strong ability to remove the particles and impurities.
2. Adopt the high quality filter materials, which have a good function in anti-corrosive, thermo stable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
3. The combination of coalescing separation filter and vacuum dehydration system which dewater effectively and thoroughly.
4. The unique degas and dewater technology: Using the Duplex 3D Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology. It can remove the free and dissolved water from the oil thoroughly.
5. Strong capability of breaking emulsification.
6. Advanced dielectric condensation device
7. Advanced temperature controlling system controls the oil's temperature and heater's working automatically
8. High quality pressure controller keeps the whole operation safely.
9. Able to drain water on line through the water receiver device. It is easy to control this machine.
10. Adopt Double-infrared fluid level auto-control systems which can control oil inlet and oil outlet quantity automatically.
11. Adopt a trinity of interlocked preventive device to keep heater, oil pump and filters safe and reliable.
12. Low maintenance cost and time
Technical specifications

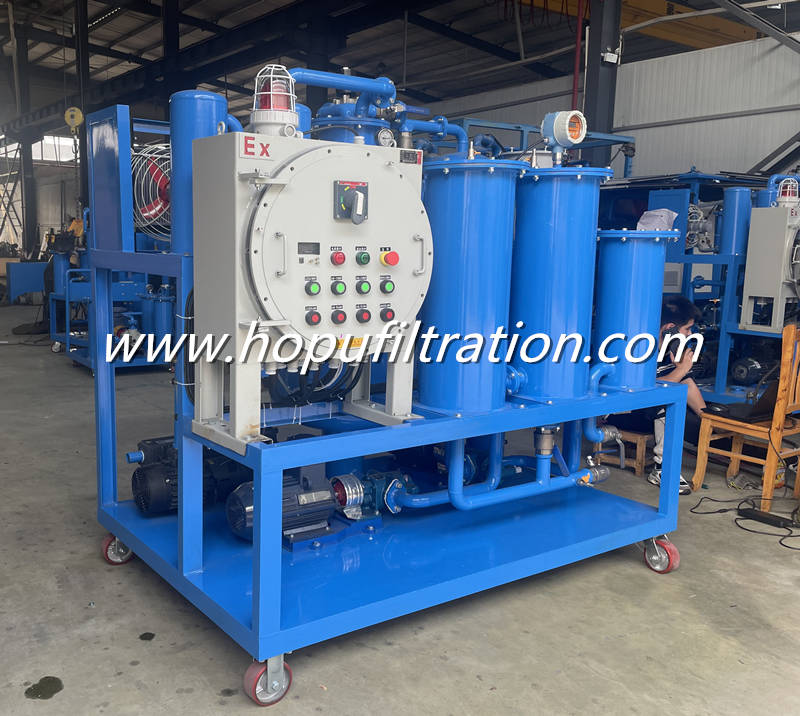

Model | TYA series explosion proof hydraulic oil purifier |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Vacuum degree | Mpa | -0.06 ~ - 0.095 |
Working pressure | Mpa | ≤0.4 |
Temperature Control Range | ºC | 0 ~ 100 |
Operation Temperature | ºC | 50 ~ 70 |
Power supply |
| 380 VAC, 50 Hz, 3 Phase (or as per required) |
Working noise | DB (A) | ≤ 65 ~ 90 |
Electric heating power | KW | 18 | 24 | 26 | 30 | 48 | 60 | 96 | 135 |
Total electric power | KW | 19.3 | 25.3 | 27.6 | 32.6 | 56 | 69 | 106.5 | 147 |
Inlet (outlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф50 | Ф50 | Ф60 |
Dimension
(L × W × H) | mm | 1190 x1000
x 1400 | 1550
x1050
x1600 | 1600
x1050
x1650 | 1600
x 1150
x1700 | 1750 x1250
x 1800 | 1900
x1600
x1950 | 1900
x1700
x2000 | 2100
x1700
x2100 |
Weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 | 1500 |
Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
HOPU Oil Filtration Manufacturer is professional for different oil filtration solutions, HOPU can supply the best quality oil purification machine to you. Our price is competitive and we take responsibility to any quality uncertainty. We produce our products using only high quality raw materials and employ many skilled employees and technicians. For more product specification please contact us by email for a detailed catalog. Our factory can provide the most preferential profit to customers all over the world with competitive prices and high quality items.
FAQ
Are you a manufacturer or trading company?
Manufacturer.
HOPU has three workshops to design different product
Workshop 1 is for domestic and standard product design for oil purifier and oil testing unit
Workshop 2 is for double vacuum chamber or high vacuum oil purifier design
Workshop 3 is for customized designs and OEM order
How to ensure the security of purchase from HOPU ?
HOPU is a legal and customs registered enterprise, our products are legal in global customs. Quality and and after sales service can be guaranteed
How to get a quick quotation?
HOPU’s products are supplied and exported to global market, and we will offer quotations to customers from all over the world.
Generally you will receive a reply within 12 hours (due to time difference) from our Service team or salesman
If your inquiry includes complete company name, website, telephone number and specific request of product, you will get a quick quotation
Your inquiry message will be replied within 12 hours
