Hydraulic Oil Purification and Filtration System

Inquire Now Next ProductDownload
share

Product Description

Hydraulic Oil Purification and Filtration Equipment

HOPU Hydraulic Oil Purifier Description
Generally, hydraulic oil is to be maintained at very high quality of Purification. The Oil often having large sizes of particles is passed through coarse type filter, to trap the large sized particles. Having taken care of micronic and sub-micronic particles, it is further finely cleaned by electro-statically, operated hydraulic oil cleaning system brought to the international standards.

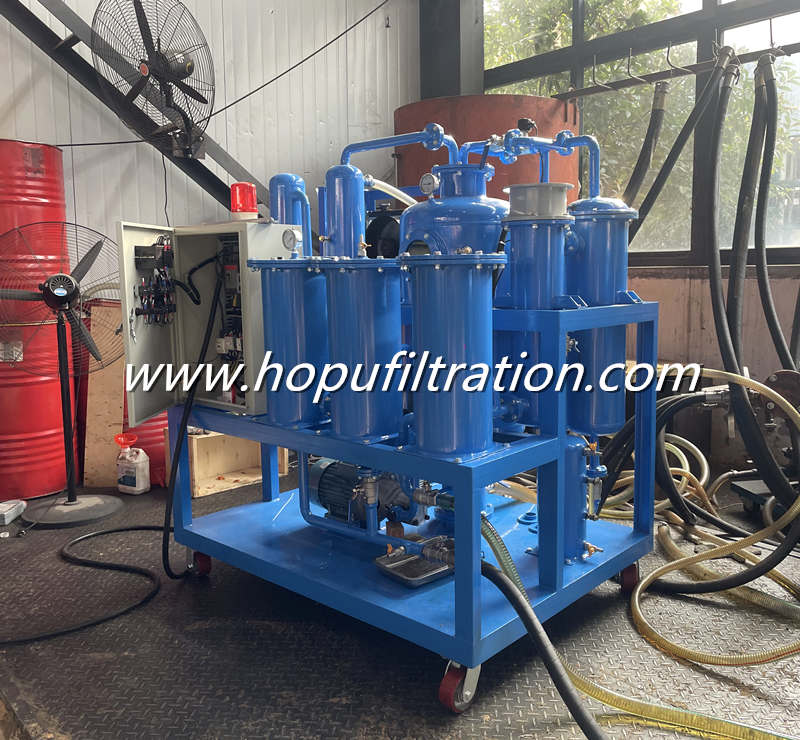

Hydraulic Oil Purification and Filtration SystemHOPU TYA Series Hydraulic oil Cleaning & Filtration machine is used for cleaning and filtering the various types of hydraulic oil and other industrial lube oils such as gear oil, compressor oil, coolant oil, etc.. used in the power generation, hydraulic system, machinery, metallurgy, mining, petroleum, chemical industry and other fields.
Cooking oil Cleaning machine can effectively purify hydraulic oils at grade ISO - VG - 46, 68, 100, etc… by reducing the water content from 2000 ppm down to 5 ppm and separates (removes) the free water, sludge, gas content and carbon from Lube oil & hydraulic oil.

 Hydraulic Oil Purification and Filtration System

Features
1. The machine adopt deeply and precisely FH rectangular filtering system and highly polymeric adsorbing material filter. So the machine has strong ability to remove the particles and impurities.
2.  Adopt the high quality filter materials, which have a good function in anti-corrosive, thermo stable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
3. The combination of coalescing separation filter and vacuum dehydration system which dewater effectively and thoroughly.
4. The unique degas and dewater technology: Using the Duplex 3D Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology. It can remove the free and dissolved water from the oil thoroughly.
5. Strong capability of breaking emulsification.
6. Advanced dielectric condensation device
7. Advanced temperature controlling system controls the oil's temperature and heater's working automatically
8. High quality pressure controller keeps the whole operation safely.
9. Able to drain water on line through the water receiver device. It is easy to control this machine.
10. Adopt Double-infrared fluid level auto-control systems which can control oil inlet and oil outlet quantity automatically.
11. Adopt a trinity of interlocked preventive device to keep heater, oil pump and filters safe and reliable.
12. Low maintenance cost and time

Hydraulic Oil Purification and Filtration System

Technical specifications

Model

TYA

Flow rate

L/H

600

1200

1800

3000

6000

9000

12000

18000

Vacuum degree

Mpa

-0.06 ~ - 0.095

Working pressure

Mpa

≤0.4

Temperature Control Range

ºC

0 ~ 100

Operation   Temperature

ºC

50 ~ 70

Power supply


380 VAC, 50 Hz, 3   Phase (or as per required)

Working noise

DB (A)

≤ 65 ~ 90

Electric heating   power

KW

18

24

26

30

48

60

96

135

Total electric   power

KW

19.3

25.3

27.6

32.6

56

69

106.5

147

Inlet (outlet)   caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф50

Ф50

Ф60

Dimension
 (L × W × H)

mm

1190 x1000
x 1400

1550
x1050
x1600

1600
x1050
x1650

1600
x 1150
x1700

1750 x1250
x 1800

1900
x1600
x1950

1900
x1700
x2000

2100
x1700
x2100

Weight

Kg

450

550

600

750

850

1000

1200

1500

  Note:   1. The dimension and weight will be changed with changing of technical specs.
              2. All the specs can be customized according to client's requirements.

Hydraulic Oil Purification and Filtration System


HOPU Oil Filtration Manufacturer is professional for different oil filtration solutions, HOPU can supply the best quality oil purification machine to you. Our price is competitive and we take responsibility to any quality uncertainty. We produce our products using only high quality raw materials and employ many skilled employees and technicians. For more product specification please contact us by email for a detailed catalog. Our factory can provide the most preferential profit to customers all over the world with competitive prices and high quality items.

 Hydraulic Oil Purification and Filtration System

FAQ

Are you a manufacturer or trading company?

Manufacturer.

HOPU has three workshops to design different product

Workshop 1 is for domestic and standard product design for oil purifier and oil testing unit

Workshop 2 is for double vacuum chamber or high vacuum oil purifier design

Workshop 3 is for customized designs and OEM order



How to ensure the security of purchase from HOPU ?

HOPU is a legal and customs registered enterprise, our products are legal in global customs. Quality and and after sales service can be guaranteed



How to get a quick quotation?

HOPU’s products are supplied and exported to global market, and we will offer quotations to customers from all over the world.

Generally you will receive a reply within 12 hours (due to time difference)  from our Service team or salesman

If your inquiry includes complete company name, website, telephone number and specific request of product, you will get a quick quotation
