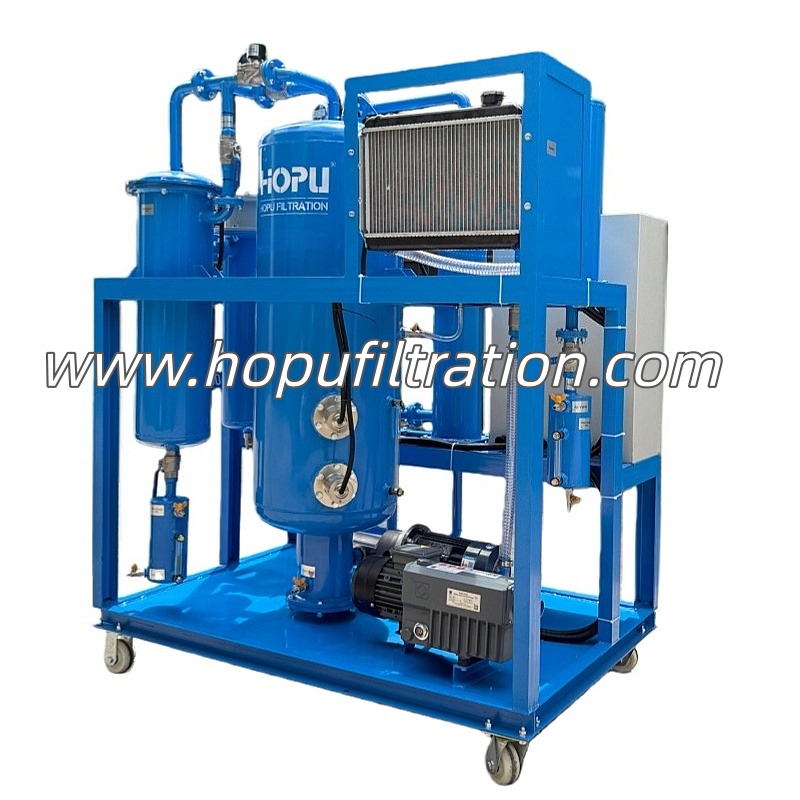

Hydraulic oil purification machine for aluminum Extruders

HOPU Hydraulic oil purification machine for aluminum Extruders, CNC injection machine, recycle your used dirty hydraulic lube oil, reuse as new oil, saving maintenance cost

TYA Series Vacuum Hydraulic Lube Oil Purifier For Dehydration is mainly designed to purify various industrial waste oils with the viscosity lower than 320 mm²/s, such as turbine oil, mechanical oil, hydraulic oil and cooler oil cutting fluid , quench oil,high temperature chain oil, heat transfer fluids,bearing fluids, heat treatment quench oil,and different industrial oils, which are polluted by the water infiltration, emulsification and particle pollution etc. in the process of their production, transportation and usage.   Through special design of the vacuum separation system and the impurity filtering system, HOPU oil purifiers can effectively filter out various pollutants in the oil.   HOPU Vacuum Lube Oil Purifier For Dehydration has remarkable economic benefits, it will be an ideal choice for the plants maintenance service, energy-saving and cost-reducing.

Vacuum Dehydration System for Lubricant Oil ,The free water quickly forms water vapor and passes through the coalescence separation device (mainly using lipophilic and hydrophobic high-tech materials), The main purpose is to allow the oil to pass smoothly and the water to be automatically separated; for dissolved water and emulsified water, a high score is used. Sub-emulsification system, German three-dimensional flash evaporation technology, for micro water, an atomization generating device, three-dimensional Three-dimensional evaporation device, thin film vaporization, Bowel surface expansion device, truly realize binary one-time dehydration and rapid separation The water in the oil is separated and deeply dehydrated, reaching ≤5PPM.

Working Principle

 When it starts working, the used oil will be poured into the heater to heat under the vacuum pressure, then the heated oil enter into the primary filter which will eliminate the big impurities, then the oil enter into the vacuum separator, the oil will flow the special radiation device, which make the unit/volume oil to produce a large surface area, lets the pollution oil exposure in the low humidity atmosphere, thus the water, air and gas can be eliminated. The treated vapor and gas form the gaseous mixture becomes the liquid through the water tank and the chiller condensation, then the liquid enters water receiver together, the vacuum extracts the surplus gas.
The oil which is drained away water flow into precision strainer where can exhaust particulates (oil purification). According the quantity of the water content, a whole purification needs many times circulation to drain away the water.

Technical Specificatio for hydraulic oil purification machine

 HOPU lube oil purifiers (oil dehydrators) can help you realize a wide range of opportunities for savings:

●Extension of fluid life

●Improved productivity

●Purification of collected fluids

●Reduced time for fluid changes

●Less frequent fluid disposal

●Minimized corrosion within fluid systems

●Increased equipment reliability
