1.Scope of application:

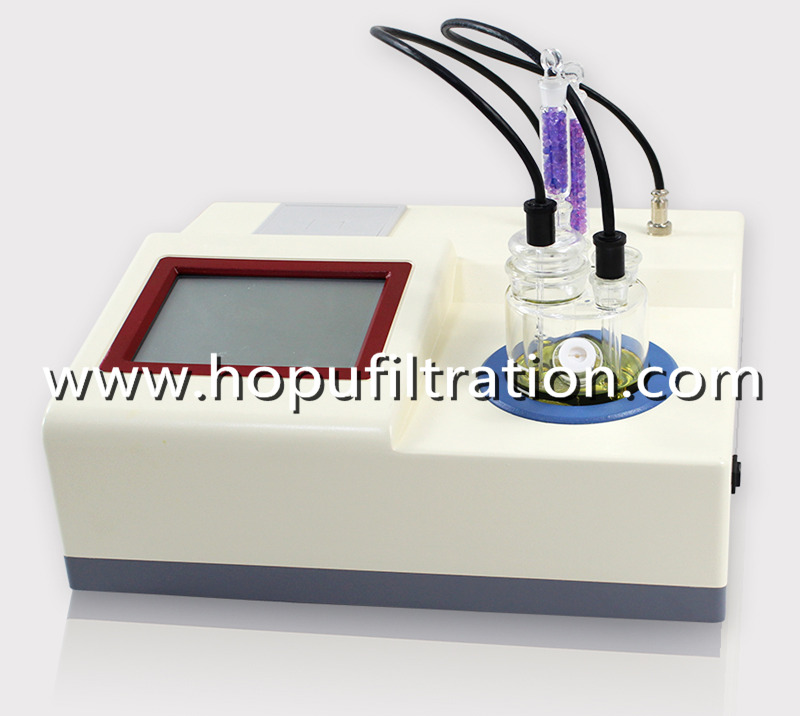

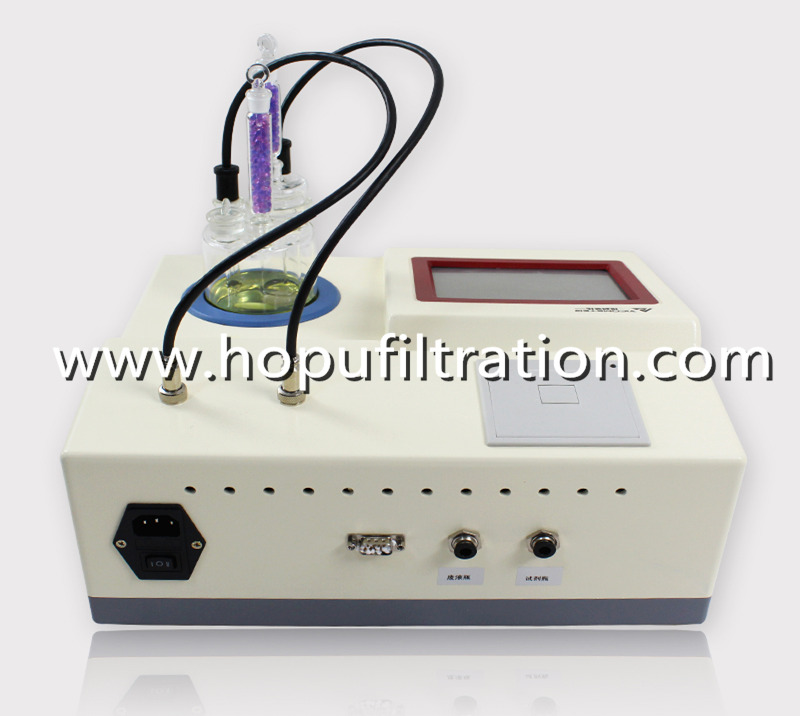

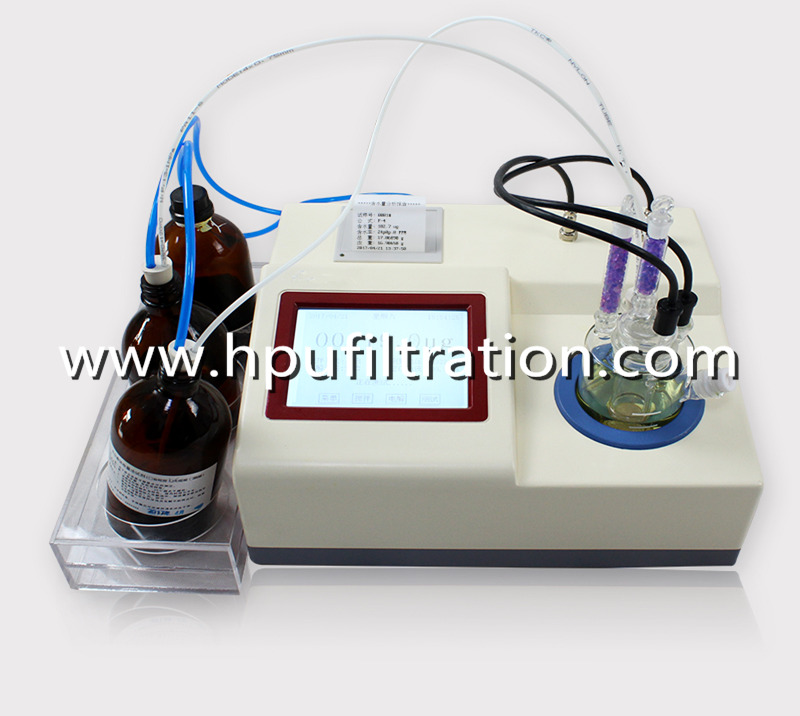

HST Series Oil Moisture Tester is based on Karl Fischer Coulometric titration principle,and Test Methods for Water Content of Liquid Petroleum Products (Karl Fischer Methods)”. It is suitable to determine water content in the liquid or petroleum products by titration using Karl Fischer reagent.
It owns high accuracy and easy operation. This instrument can determine crystal water, adsorbed water and free water in any liquid oil,such as used cooking oil, Crude palm oil，Coconut
oil,vegetable oil , sunflower oil,groundnut oil, olive oil, and also for lubricant oil,insulation oil.transformer oil and so on.
It is used in the electricity, petroleum, chemical, pharmaceutical, food and other industries.
2 Technical specifications
Modes Coulometric KF titration with automatic blank deduction
Endpoint indication Voltametric, AC indication
Iodine production Pulse with variable current strength and length
Current at the generator electrode: 400 mA
Titration speed max. 2.4 mg H2O/min
Determination range 10 ug to 100 mg H2O
Resolution 0.1 ug H2O
Reproducibility Sample: Reagent manufacturer's standard.
With 10 ug...1000 ug H2O: ± 2 ug
With >1000 ug H2O: 0.2% or better
Drift compensation: automatic
Display Graphical LCD, 320x 240 dots, LED back-lit
Printer Built-in thermal printer, Paper width 57 mm
Memory Data storage 200 results
2.2 Ambient temperature
Nom. operation range 5 ... 40 °C
Storage – 20 ... 60 °C
Transport – 40 ... 60 °C
2.3 Mains connection
Voltage 220 V ± 10 % 47-63 Hz
Power consumption max. 55 W
2.4 Dimensions
Material of housing PVC
Material of display Glass(LCD)
